Right Hand Bench

Description:

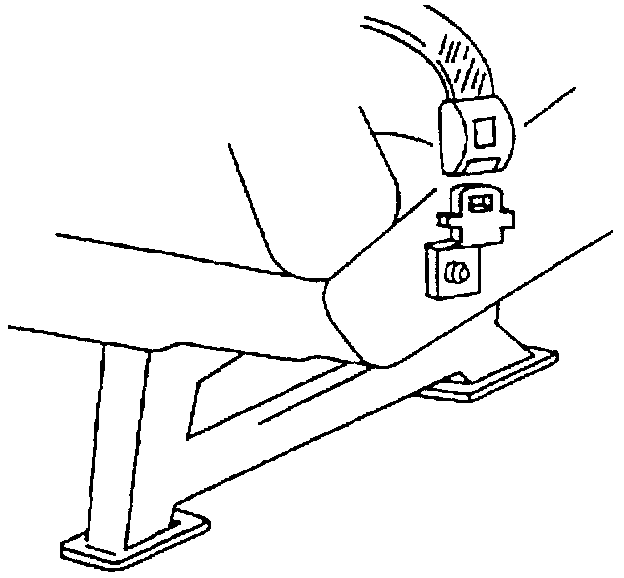

1. Install the latch retaining bolt to the seat frame.
Tighten
Tighten the bolt to 53 N.m (39 lb. ft).

NOTICE: Refer to Fastener Notice in Service Precautions.

Description:

2. Snap the seat back hinge cover into place.
3. Install the seat back hinge cover retaining screw.

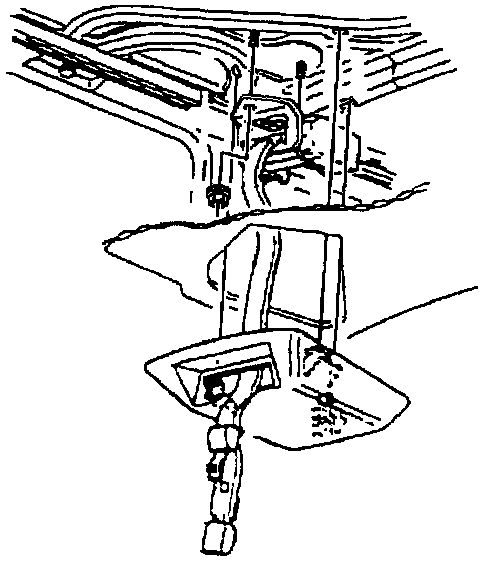

4. Install the retractor assembly retaining nuts to the roof reinforcement panel.
Tighten
Tighten the nuts to 35 N.m (26 lb. ft).
5. Snap the retractor cover into place.
