Left Hand Bench

Description:

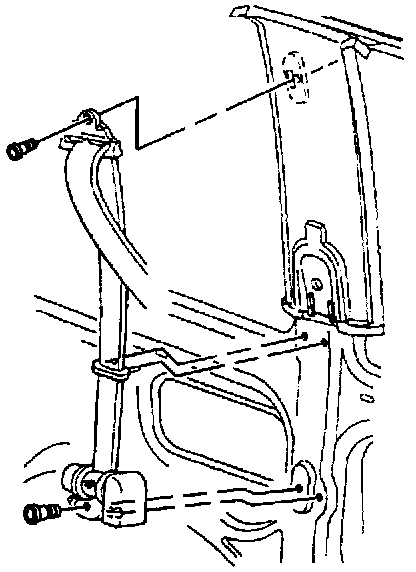

1. Install the retractor retaining bolt to the body side.
Tighten
Tighten the bolt until the bolt is fully driven and seated. Do not strip the bolt.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the body side trim panel. Refer to Body Side Trim Panel Replacement in Interior Trim.

Description:

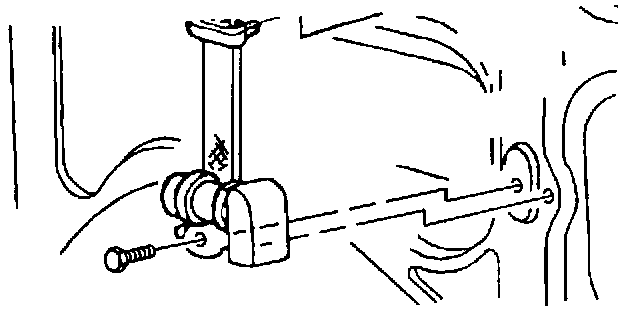

3. Install the shoulder belt retaining bolt to the body.
Tighten
Tighten the bolt until it is fully driven and seated. Do not strip the bolt.
4. Install the cover to the shoulder belt.

Description:

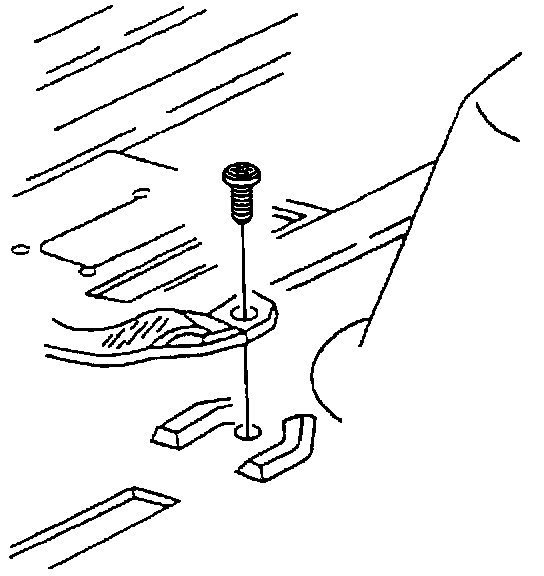

5. Install the lower anchor plate retaining bolt to the floor panel.
Tighten
Tighten the bolt until the bolt is fully driven and seated. Do not strip the bolt.
6. Install the rear bench seat. Refer to Bench Seat Replacement in Seats.
