Retractor Assembly

Description:

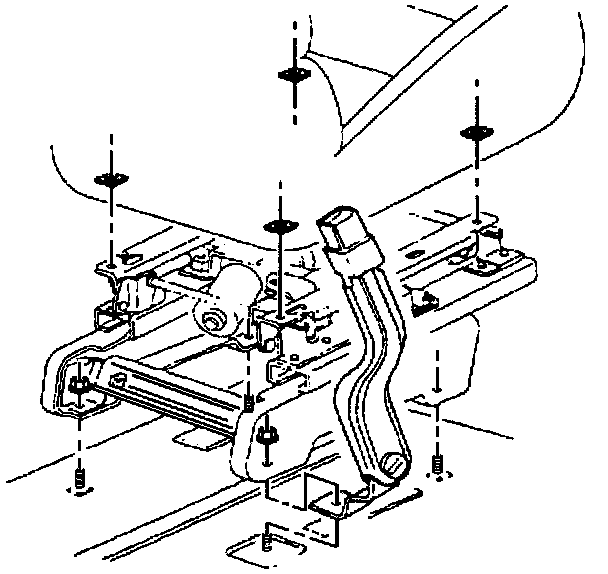

1. Remove the bolt retaining the belt guide between the seat and the riser.
2. Remove the body side front upper trim panel from the driver's side only. Refer to Body Side Front Upper Trim Panel Replacement in Interior Trim.
3. Remove the front side door lock pillar garnish molding from the passenger's side only. Refer to Front Side Door Lock Pillar Garnish Molding Replacement in Interior Trim.

Description:

4. Remove the bolt retaining the retractor to the pillar.
5. Remove the bolt retaining the shoulder belt to the guide adjuster bracket.
6. Remove the seat belt warning electrical connector.
7. Remove the retractor from the vehicle.
