Removal Procedure

Description:

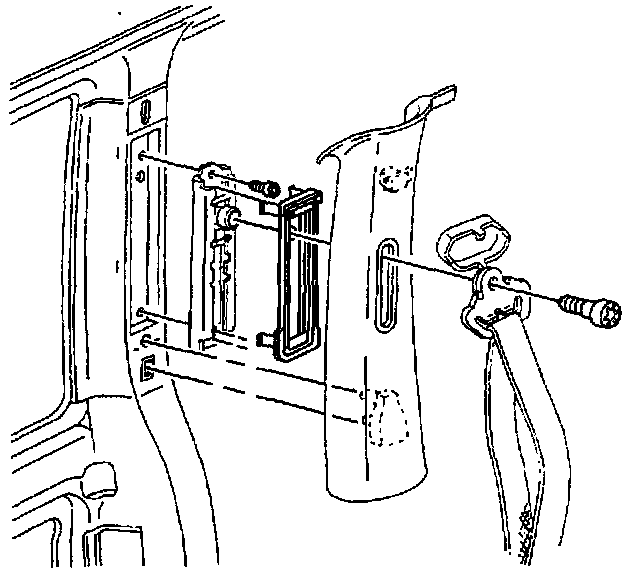

1. Remove the cover from the shoulder belt.
2. Remove the shoulder belt retaining bolt from the guide adjuster bracket.
3. Remove the front side door lock pillar garnish molding. Refer to Front Side Door Lock Pillar Garnish Molding Replacement in Interior Trim.
4. Remove the cover from the guide adjuster bracket using the following procedure:
^ Release the four locking tabs.
^ Pull the cover out.
5. Remove the two guide adjuster bracket retaining bolts from the pillar.
6. Remove the guide adjuster bracket from the pillar.
