Rear #2

Description:

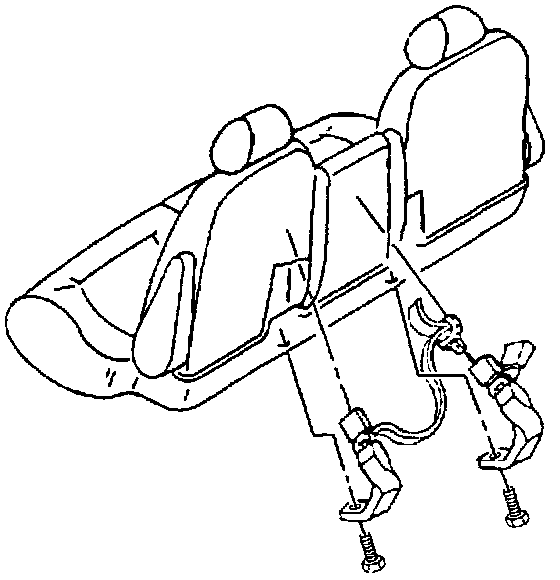

1. Install the buckles to the vehicle through the seat back.

Description:

2. Install the buckles to the vehicle through the seat back.
3. Install the bolts that hold the buckles to the seat frame.
Tighten
Tighten the bolts to 53 N.m (39 lb. ft).

NOTICE: Refer to Fastener Notice in Service Precautions.
