Bucket

Description:

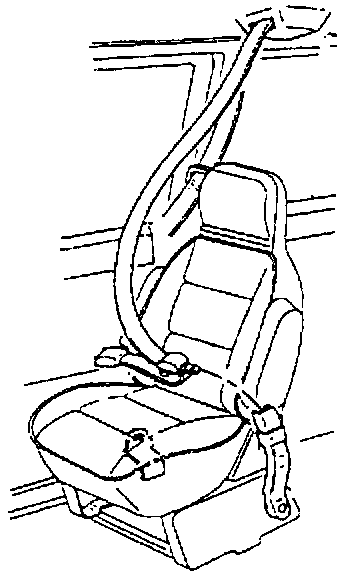

1. Install left buckle to the riser.

Description:

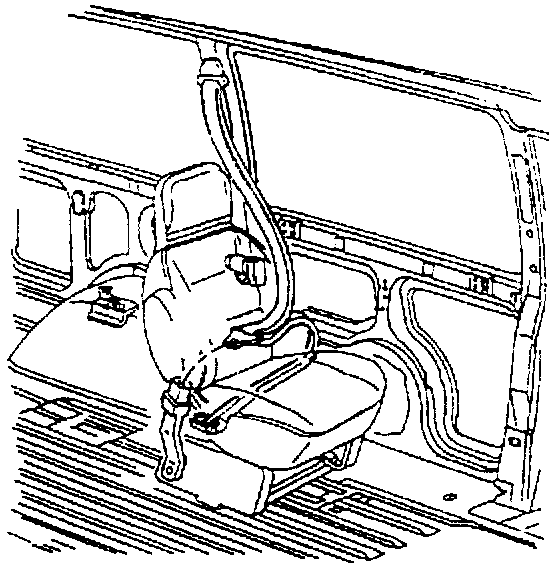

2. Install the right buckle to the riser.

Description:

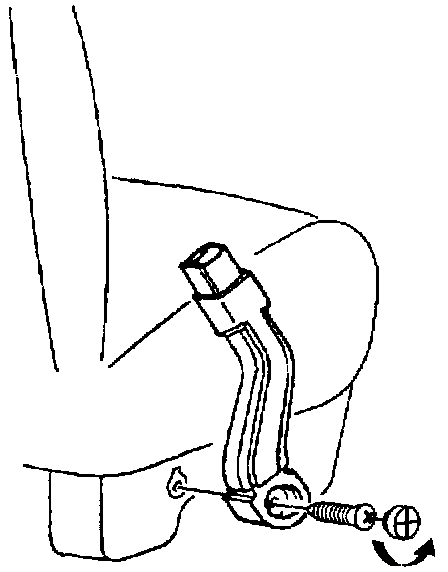

3. Install the buckle retaining bolt to the riser.
Tighten
Tighten the retaining bolt to 53 N.m (39 lb. ft).

NOTICE: Refer to Fastener Notice in Service Precautions.

4. Install the plug that covers the buckle retaining bolt.
