Knee Bolster Bracket Replacement - Right

REMOVAL PROCEDURE




1. Remove the passenger's knee bolster.
2. Roll the instrument panel down. Refer to IP Assembly Replacement. Service and Repair

IMPORTANT: Do not remove the instrument panel.

3. Remove the knee bolster bracket right center.

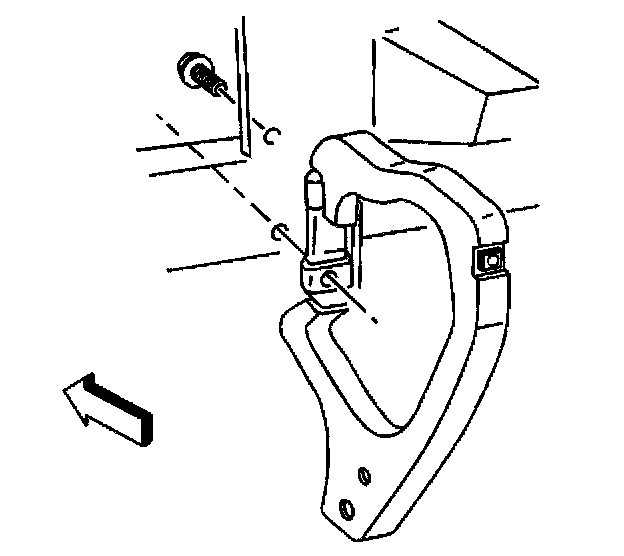

4. Remove the knee bolster bracket right side.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices




1. Install the knee bolster bracket right side.

Tighten
Tighten the screws to 8 N-m (71 lb in).




2. install the knee bolster bracket right center.

Tighten
Tighten the screws to 8 N-m (71 lb in).

3. Roll the instrument panel up. Refer to IP Assembly Replacement. Service and Repair

4. Install the passenger's knee bolster.
