Evaporative Emission Control Canister: Service and Repair

Description:

REMOVAL PROCEDURE

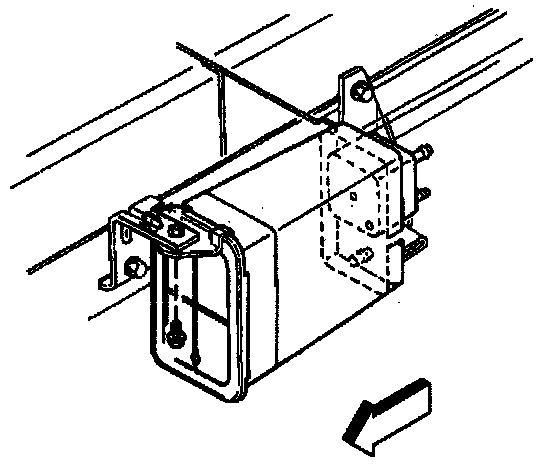

1. Remove the [1][2]EVAP hoses from the canister.
2. Mark the hose for installation on the new canister.

Description:

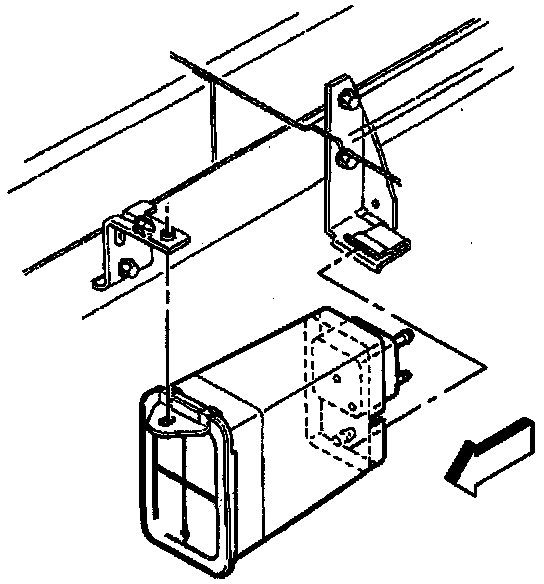

3. Remove the screw from the mounting bracket.

Description:

4. Remove the canister.

INSTALLATION PROCEDURE

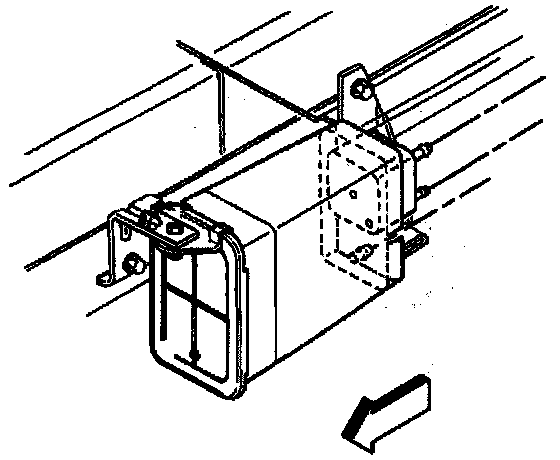

1. Install the EVAP canister.
2. Install the bracket screw.
3. Install the [1][2]EVAP hoses to the canister.
