Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oil Pressure Sensor
>>
Diagrams
>>
Connector Views
Connector Views

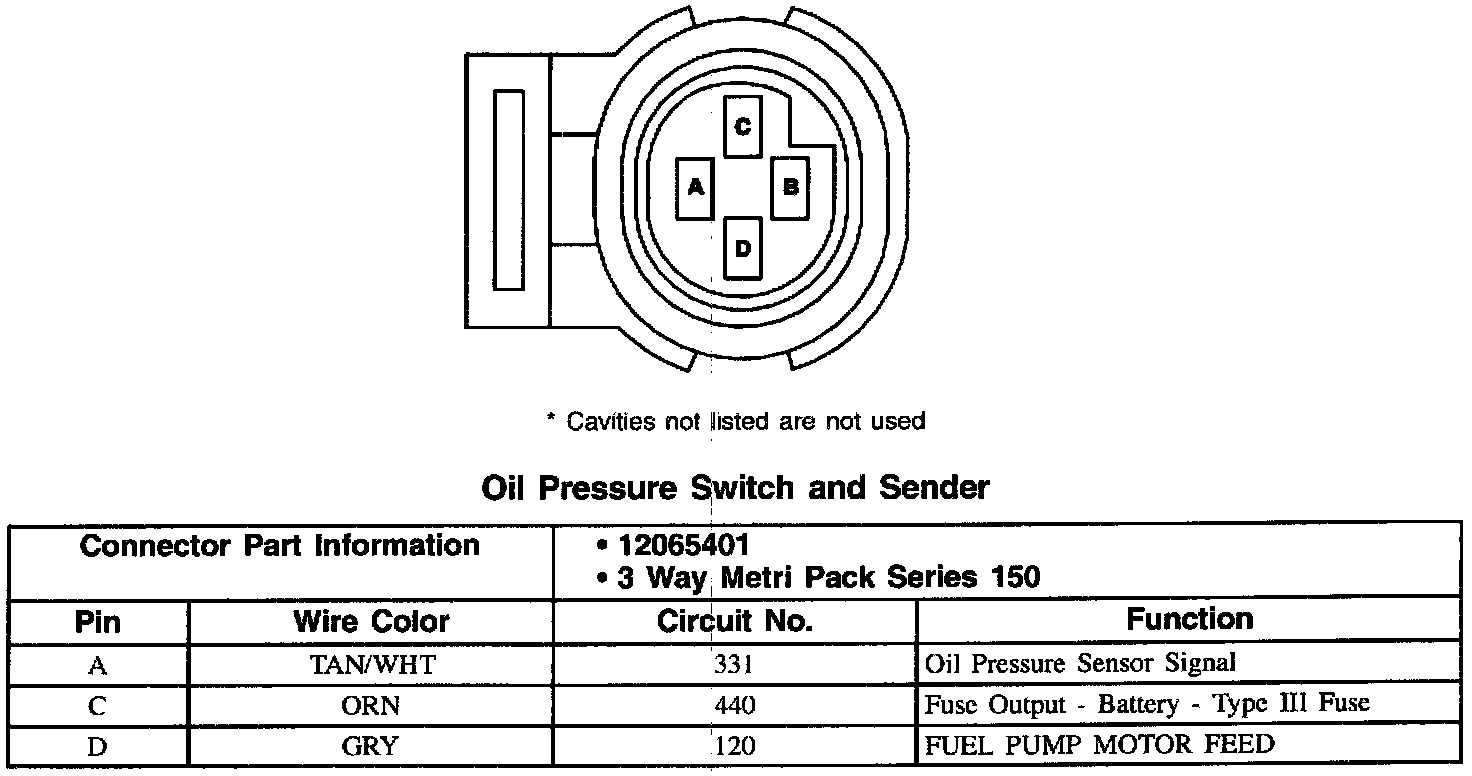

Oil Pressure Switch And Sender:
