Power Steering Cooler Pipe

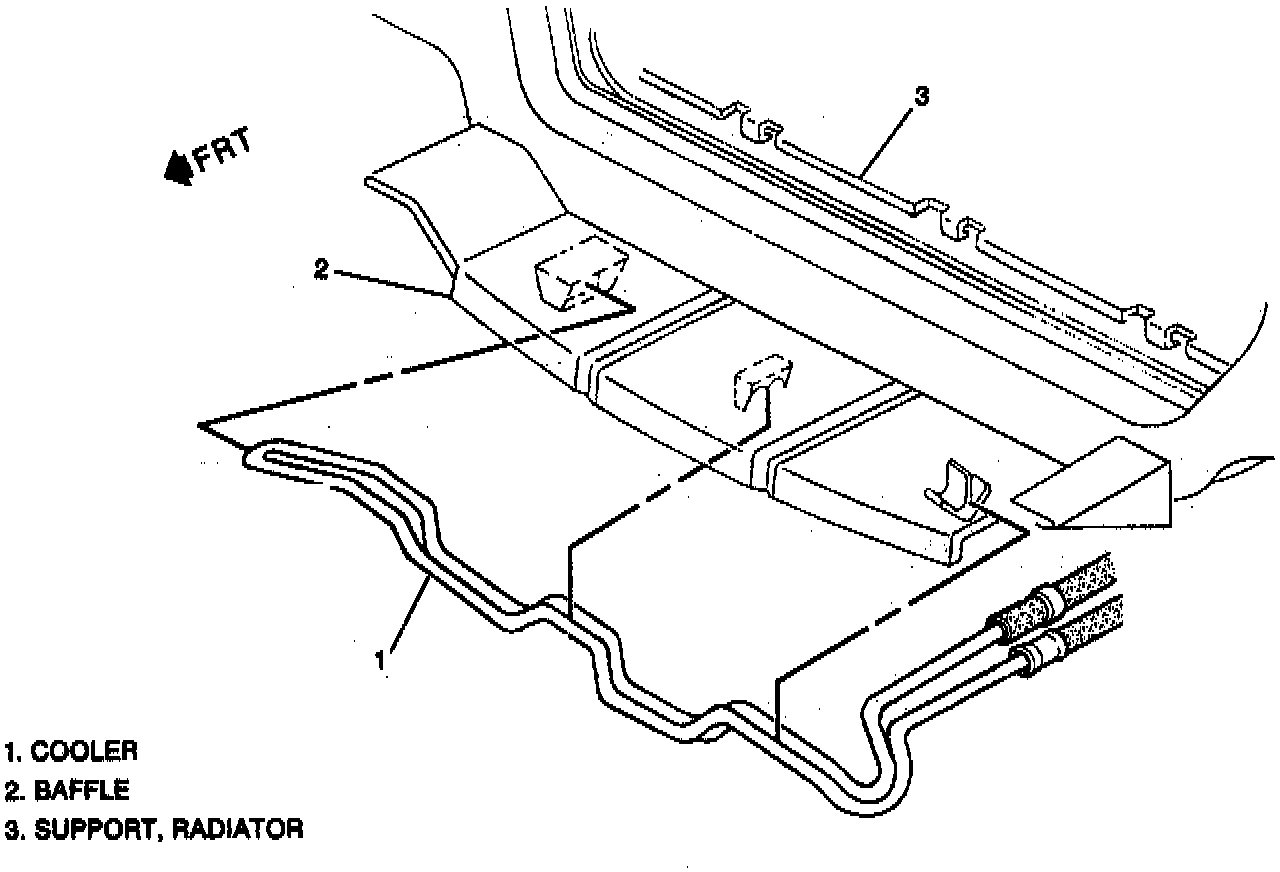

Power Steering Pipe Mounting:

The power steering cooler pipe mounts along the lower radiator support. This location allows for free flow circulation of air around the pipe. As the vehicle is driven, heat dissipates from the power steering fluid as it flows through the pipe.

The pipe is mounted to the radiator support by means of clips that hold the pipes in position. Cooler hoses attached with hose clamps supply fluid to the cooler pipe.
