Ash Tray Lamp: Service and Repair

Ashtray Lamp:

REMOVAL PROCEDURE
1. Remove the instrument panel extension screws and the nuts.
2. Disconnect the extension electrical connectors.
3. Disconnect the extension from the instrument panel.

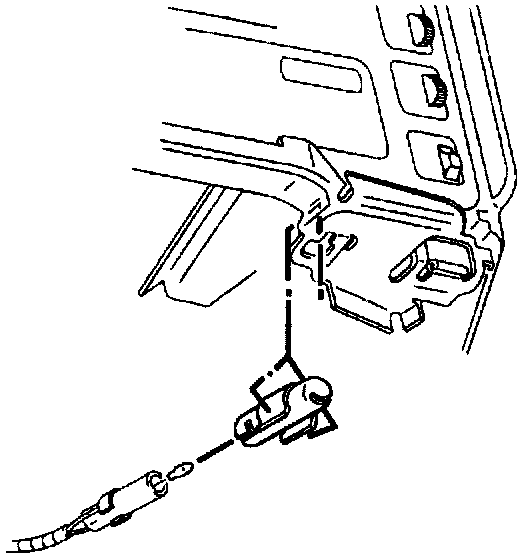

4. Pull out the bulb and the socket from the lens.
5. Remove the bulb from the socket.

INSTALLATION PROCEDURE
1. Install the bulb to the socket.
2. Press the bulb and the socket into the lens.
3. Connect the extension to the instrument panel.
4. Connect the extension electrical connectors.
5. install the instrument panel extension screws and the nuts.
