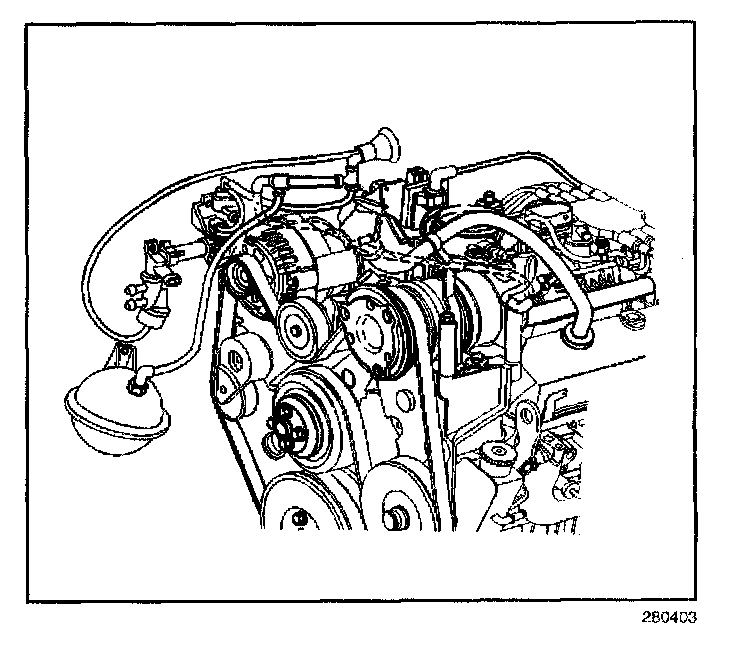

Vacuum Reservoir HVAC: Service and Repair

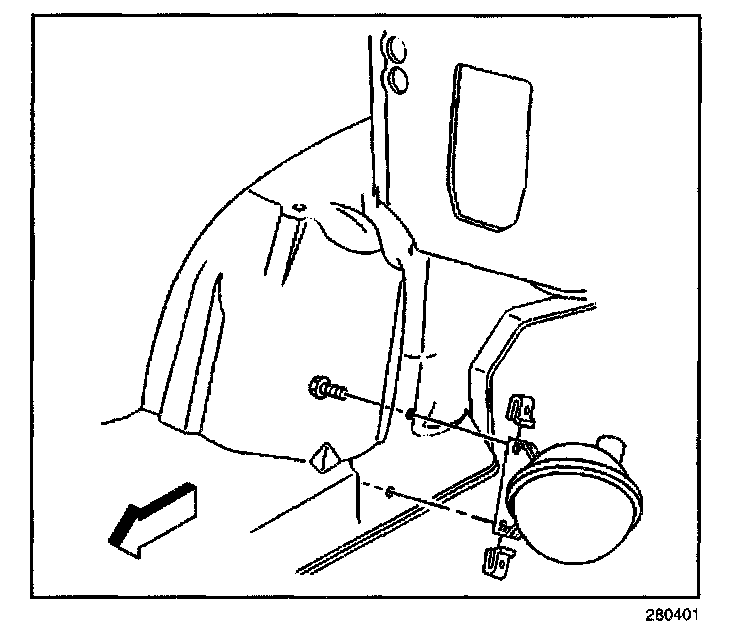

Remove or Disconnect

1. Vacuum hose(s).
2. Screws.
3. Vacuum tank.

Install or Connect

1. Vacuum tank.
2. Screws.

Tighten
^ Screws to 3 N.m (26 lb in).

3. Vacuum hose(s).
