Primary Heating System

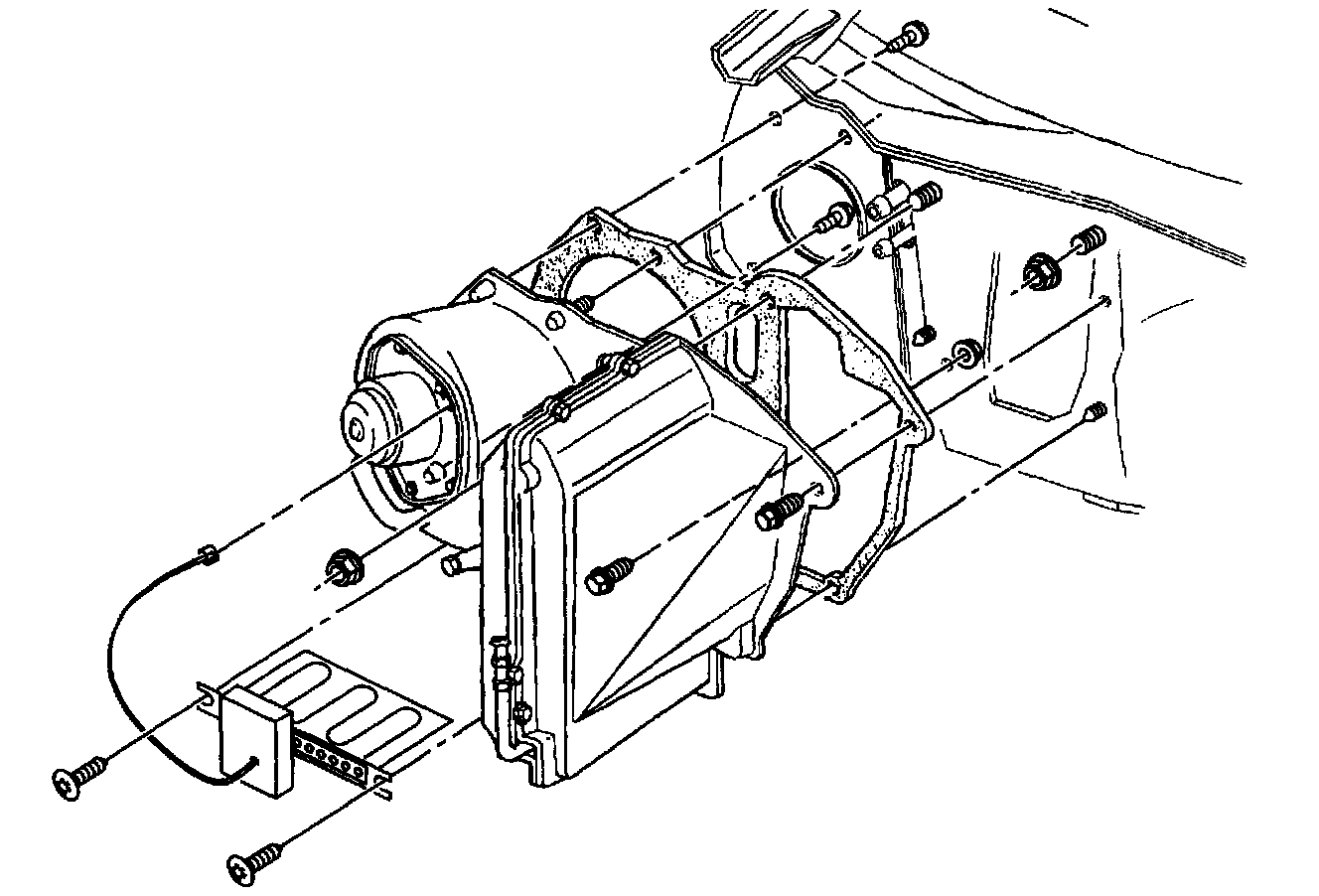

Blower Motor, Resistor, And Case:

Remove or Disconnect

1. Negative battery cable.
2. Electrical connectors.
3. Screws.
4. Blower motor resistor.

Install or Connect

1. Blower motor resistor.
2. Screws.
3. Electrical connectors.
4. Negative battery cable.
^ Check circuit operation.
