Primary A/C System

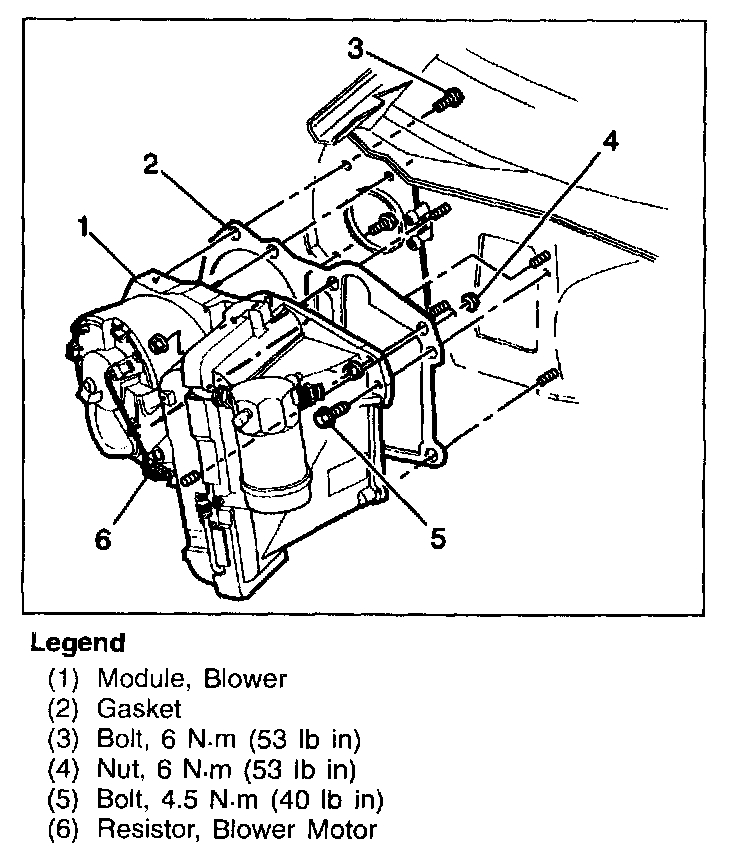

Evaporator And Blower Module (Acoustic Cover Removed):






Remove or Disconnect)

1. Negative battery cable.
2. Electrical connectors.
3. Screws.
4. Blower motor resistor.

Install or Connect

1. Blower motor resistor.
2. Screws.
3. Electrical connectors.
4. Negative battery cable.
^ Check circuit operation.
