A/C System

Left Hand Air Outlet Duct:

Right Hand Lap Air Outlet Duct:

Remove or Disconnect

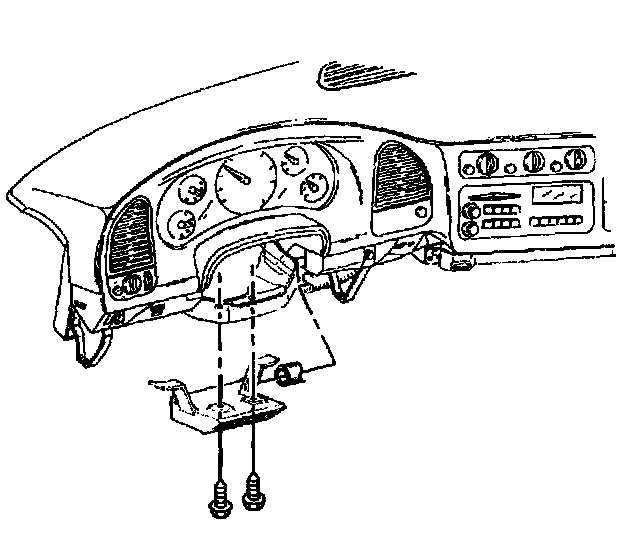

1. Knee bolster.
2. Two retaining screws from outlet duct (left hand).

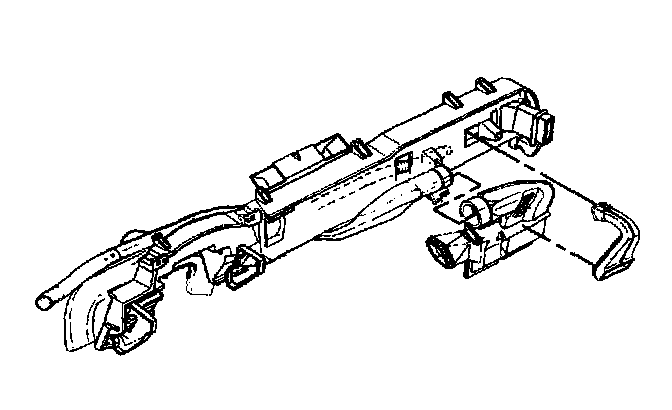

3. Duct from air distribution duct.
4. Outlet duct from vehicle.

Install or Connect

1. Outlet duct to vehicle.
2. Duct to air distribution duct.
3. Two retaining screws to outlet duct (left hand).
4. Knee bolster.
