Center

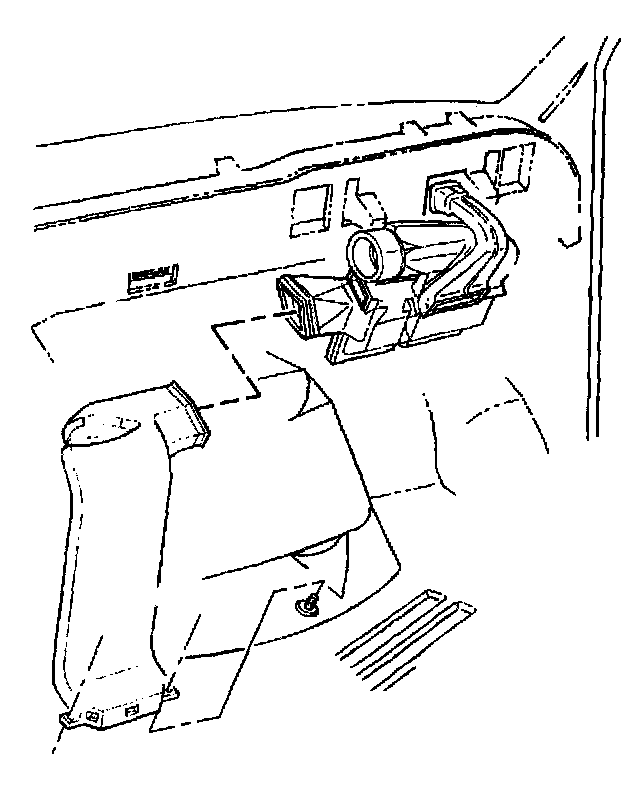

Floor Air Outlet (Center):

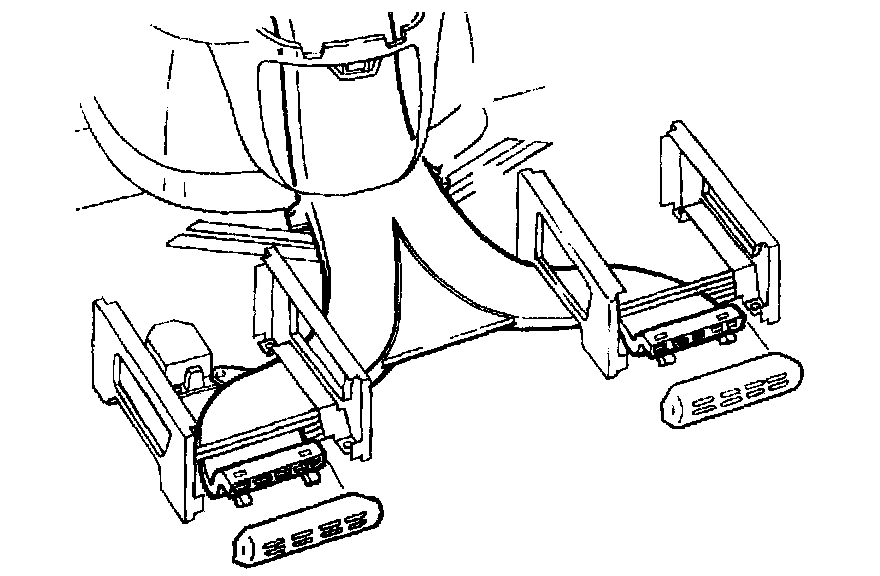

Floor Air Outlet (Rear Seat):

Remove or Disconnect

1. Instrument panel extension.
2. Floor air outlet duct from air distributor.
3. Nuts retaining the outlet duct to the floor (if equipped).
4. Floor air outlet from ducts to rear seat (if equipped).

Install or Connect

1. Floor air outlet to ducts to rear seat (if equipped).
2. Nuts to retain the outlet duct to the floor (if equipped).
3. Floor air outlet duct to air distributor.
4. Instrument panel extension.
