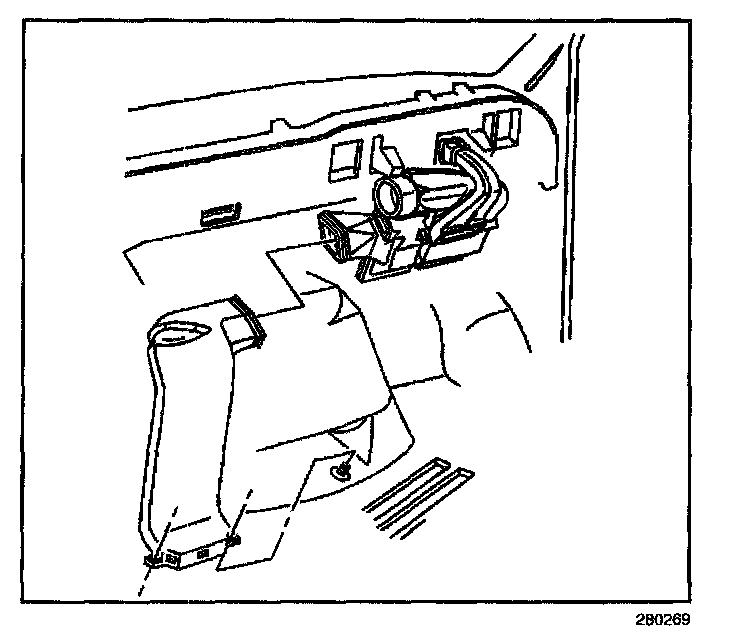

Center

Remove or Disconnect

1. Negative battery cable.
2. Instrument panel extension.
3. Floor air outlet duct from air distributor.
4. Floor air outlet nuts (if equipped).
5. Floor air outlet from vehicle.

Install or Connect

1. Floor air outlet to vehicle.
2. Floor air outlet nuts (if equipped).
3. Floor air outlet duct to air distributor.
4. Instrument panel extension.
5. Negative battery cable.
