Heating System

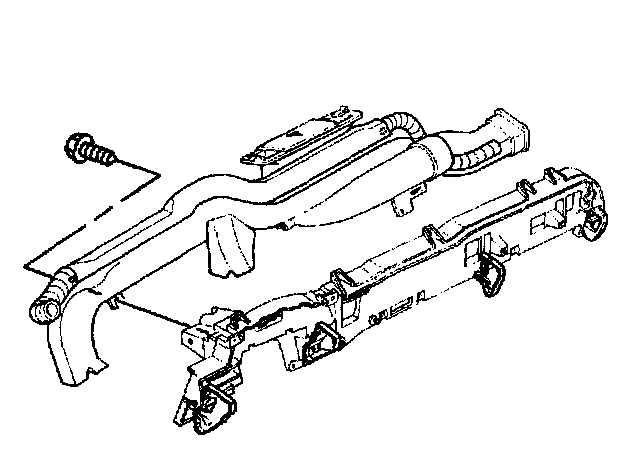

Floor Air Outlet Duct (Left Side):

Remove or Disconnect

1. Windshield defroster nozzle.
2. Two screws retaining the air outlet duct to the instrument panel carrier.
3. Side window defrost ducts.
4. Air outlet duct from vehicle.

Install or Connect

1. Air outlet duct to the instrument panel.
2. Side window defroster ducts.
3. Two screws to retain the floor air outlet duct to the instrument panel carrier.
4. Windshield defroster nozzle.
