Left Side

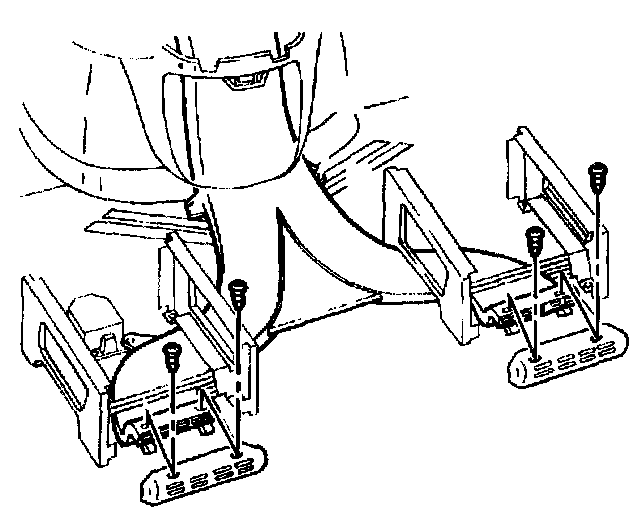

Floor Air Outlet Ducts:

Remove or Disconnect

1. Windshield defrost nozzle.
2. Two screws retaining the floor air outlet duct to the instrument panel carrier.
3. Side window defrost duct.
4. Duct from vehicle.

Install or Connect

1. Floor air outlet duct to the instrument panel.
2. Side window defrost duct.
3. Two screws retaining the floor air outlet duct to the instrument panel carrier.
4. Windshield defrost nozzle.
