Valve Rocker Arm Cover Replacement - Right

REMOVAL PROCEDURE





1. Remove the engine cover.
2. Disconnect the spark plug wires for the right side of the engine from the distributor cap.
3. Remove the PCV tube from the valve rocker arm cover and the air cleaner outlet duct.

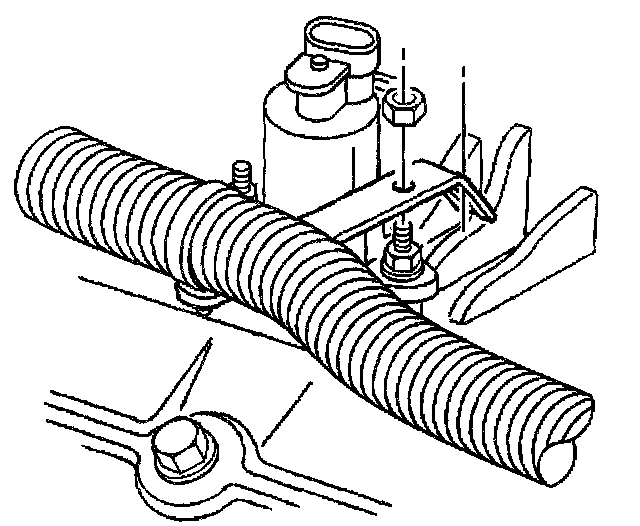

4. Remove the engine wiring harness bracket from the EVAP canister purge solenoid valve stud.
5. Move the engine wiring harness aside.

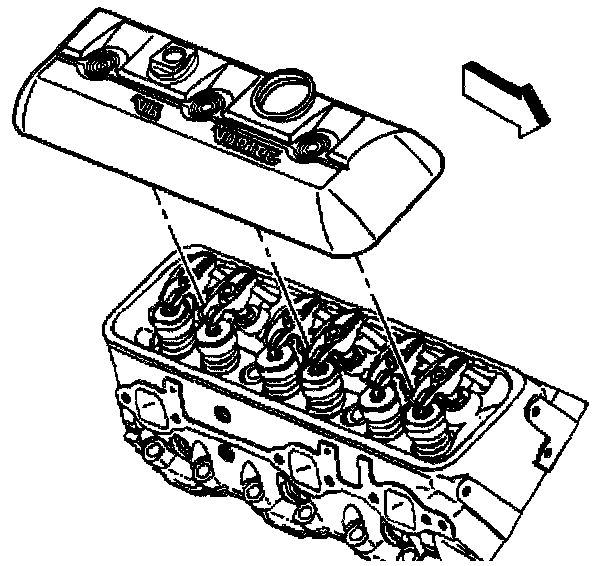

6. Remove the right valve rocker arm cover.
7. Clean all sealing surfaces.

INSTALLATION PROCEDURE

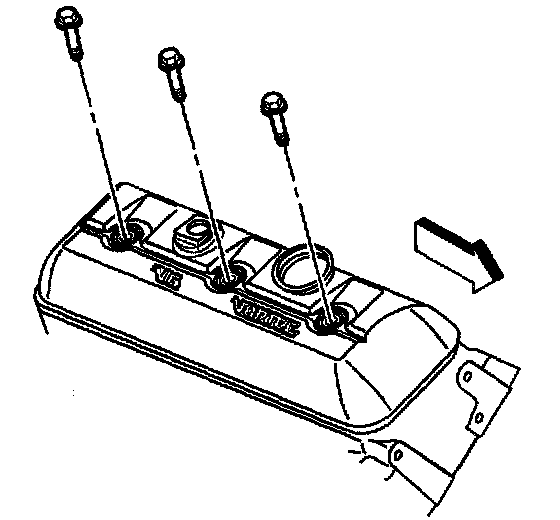

1. Install the right valve rocker arm cover and bolts.

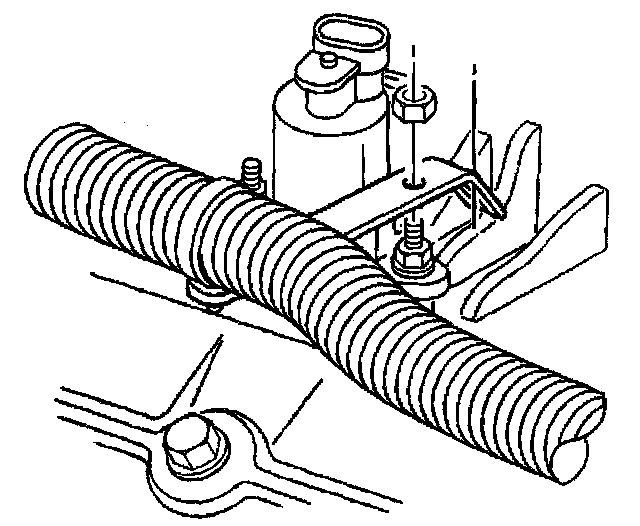

2. Install the engine wiring harness bracket and nut to EVAP canister purge solenoid valve stud.
^ Tighten the engine wiring harness bracket nut to 12 Nm (106 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

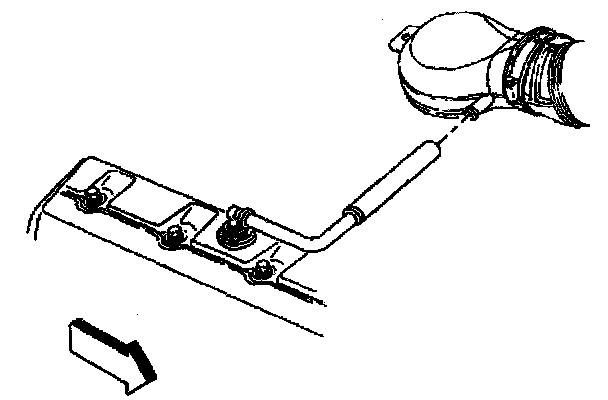

3. Install the PCV hose in the valve rocker arm cover and the air cleaner outlet duct.
4. Connect the spark plug wires to the distributor cap.
5. Install the engine cover.
