Valve Rocker Arm Cover Replacement - Left

REMOVAL PROCEDURE





1. Remove the engine cover.
2. Disconnect the Engine Coolant Temperature (ECT) gauge sensor electrical connector,

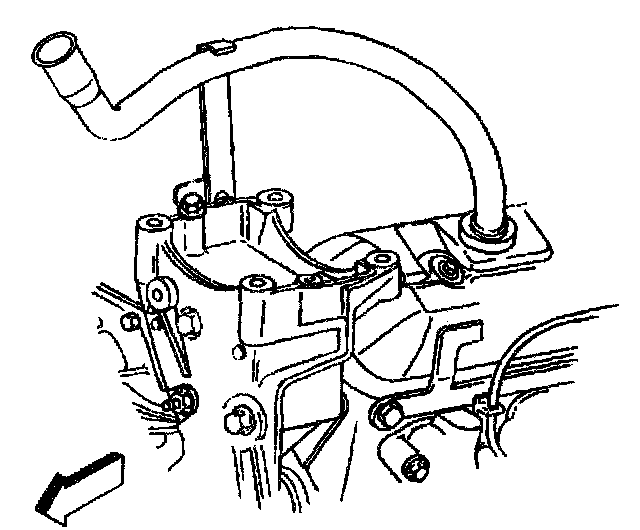

3. Remove the oil filler tube and bolt.

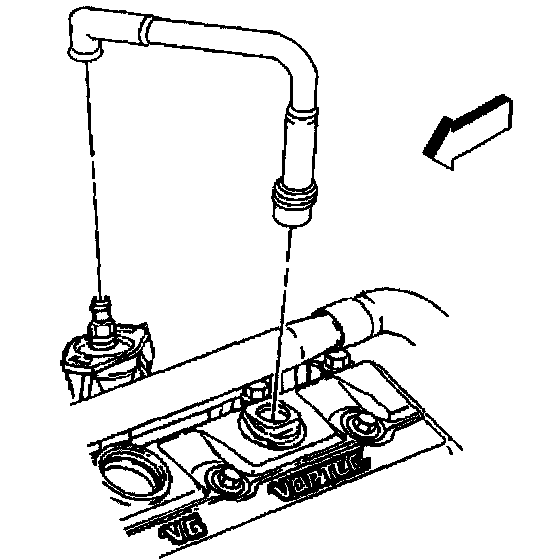

4. Remove the PCV valve hose assembly from the intake manifold and the valve rocker arm cover.
5. Remove the rear spark plug wire retainer from the support.

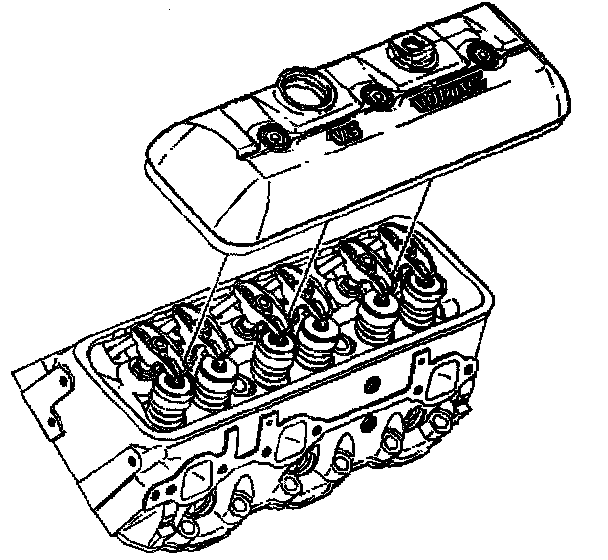

6. Remove the valve rocker arm cover.
7. Clean all sealing surfaces.

INSTALLATION PROCEDURE

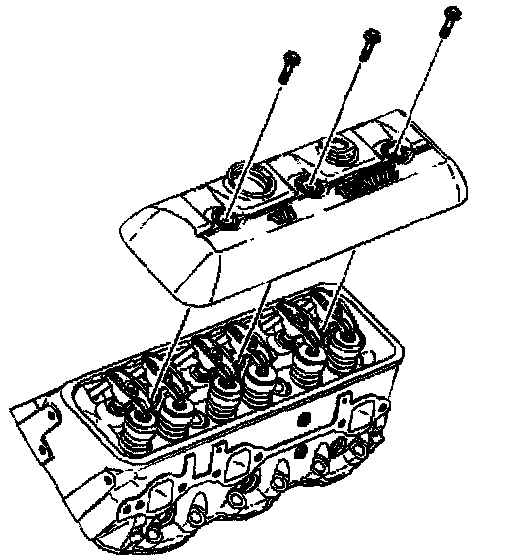

1. Install the valve rocker arm cover and bolts.

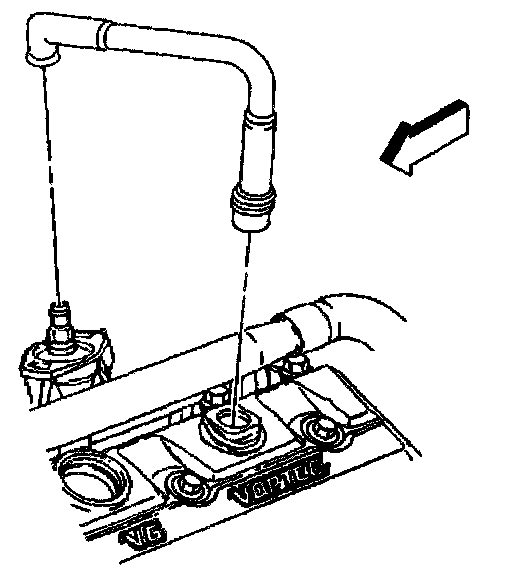

2. Install the PCV valve hose assembly to the intake manifold and in the valve rocker arm cover.
3. Install the rear spark plug wire retainer to the support.

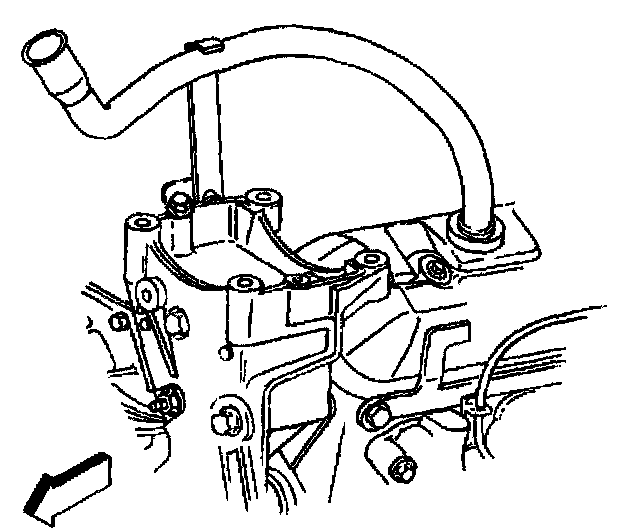

4. Install the oil filler tube and bolt.
^ Tighten the bolt to 25 Nm (18 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

5. Connect the Engine Coolant Temperature (ECT) gauge sensor electrical connector.
6. Install the engine cover.
