Chevy Truck
>>
1998
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>

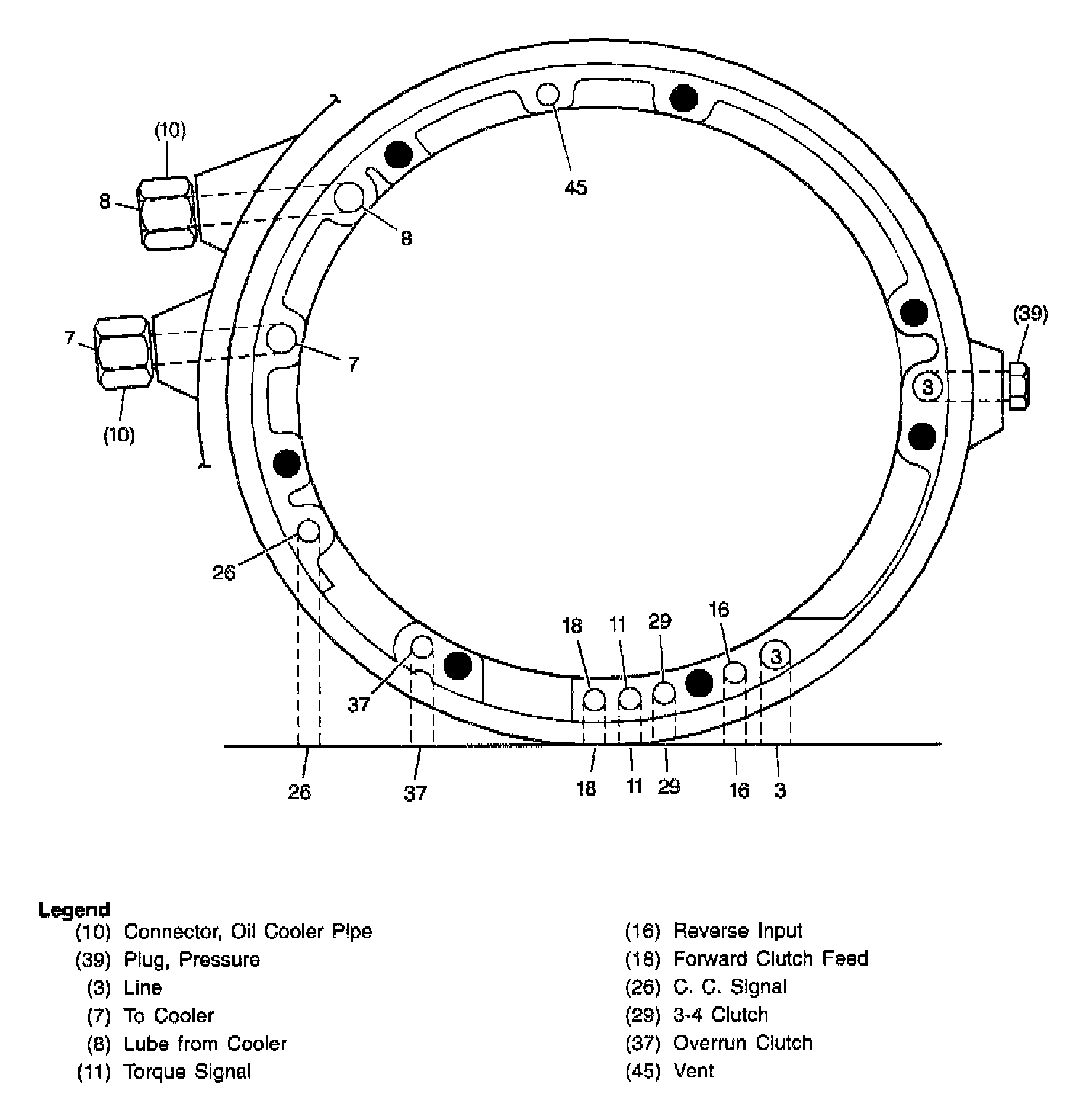

Case Fluid Passages - Pump Cover Side
Case Fluid Passages - Pump Cover Side
