Home >> Chevy Truck >> 1998 >> Astro Van L AWD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Base Radio

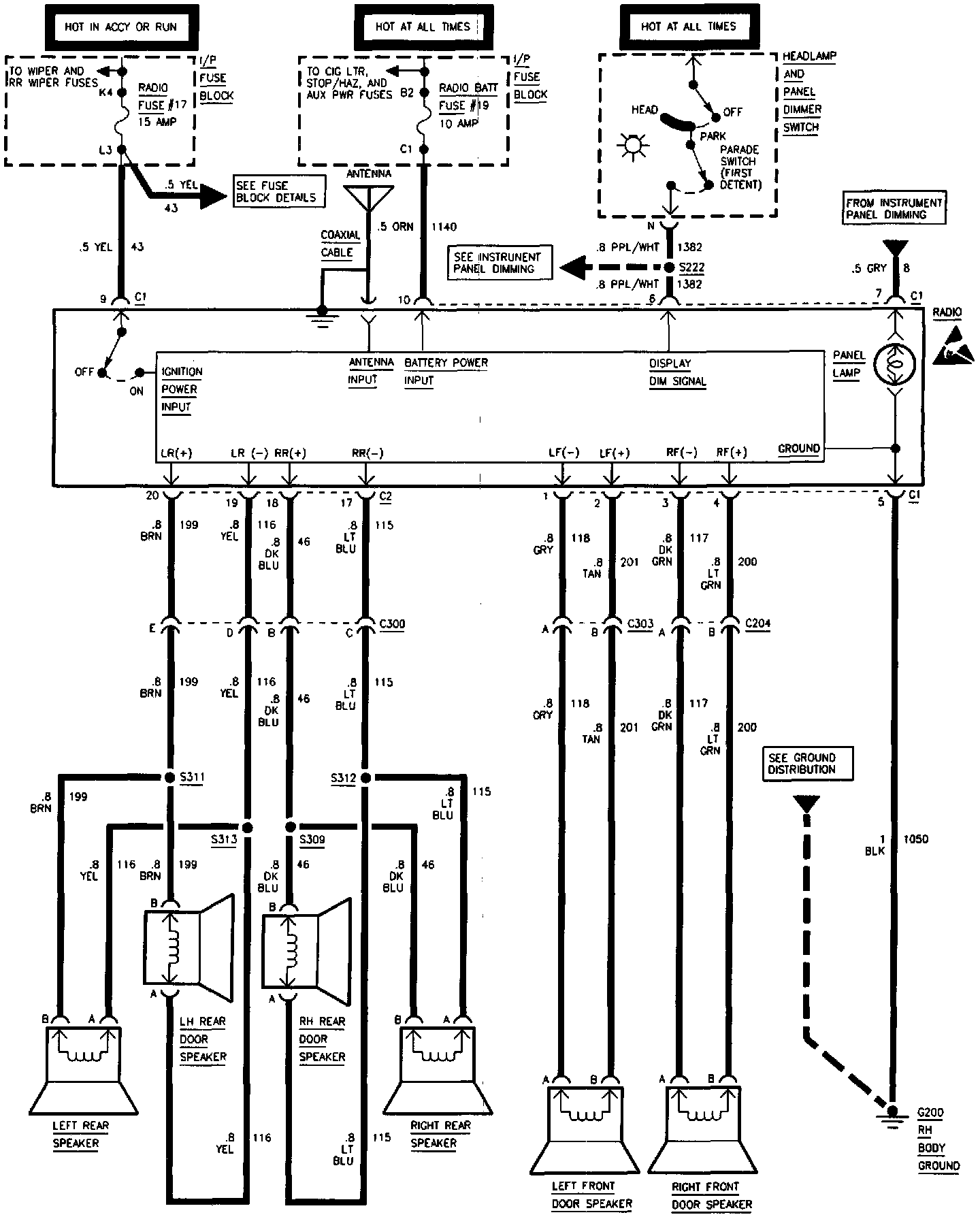

Base Radio

Base Radio:
