Home
>>
Chevy Truck
>>
1998
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Position Sensor/Switch, A/T
>>
C1
C1

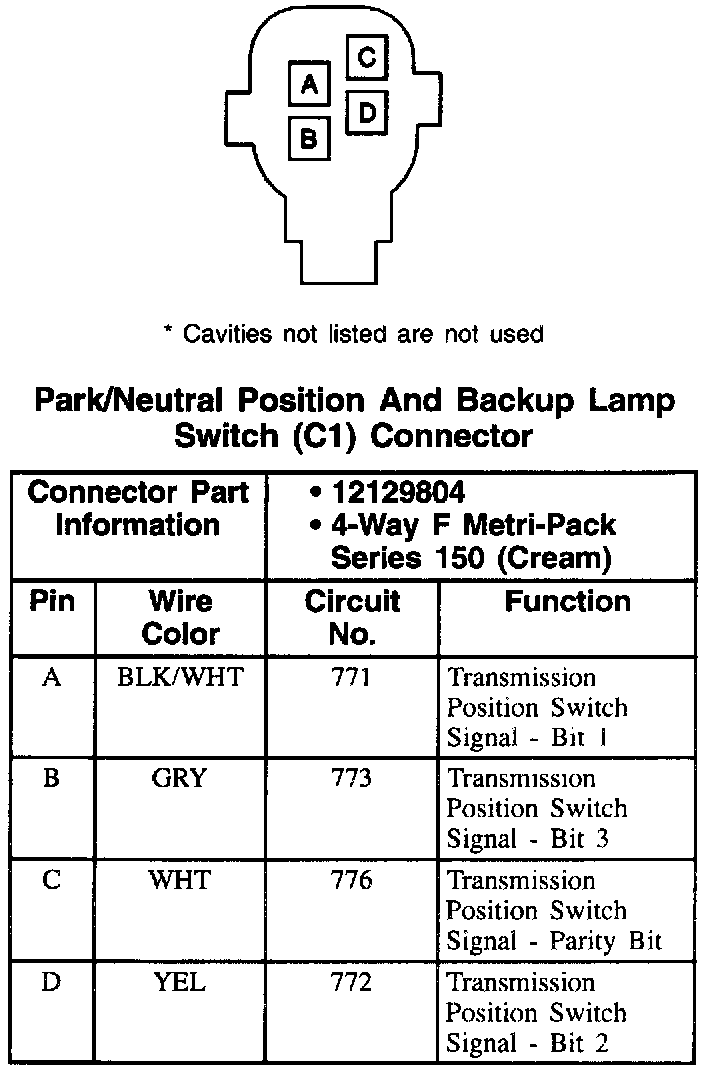

Park/Neutral Position And Backup Lamp Switch Connector: C1:
