Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
Power Window Motor

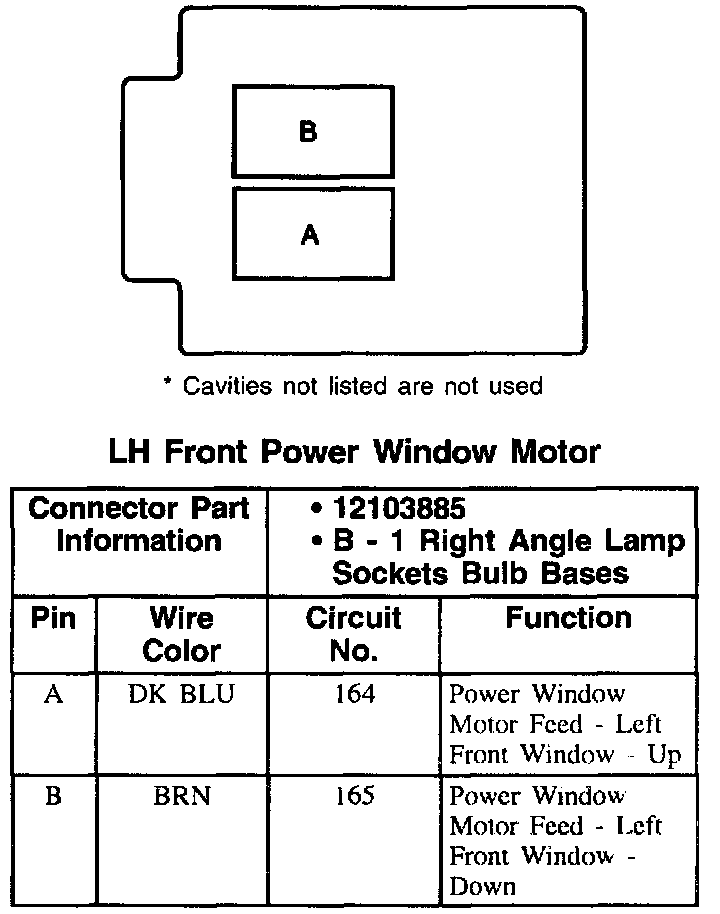

LH Front Power Window Motor:
RH Front Power Window Motor Connector:
