Home
>>
Chevy Truck
>>
1998
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
Door Lamp
Door Lamp

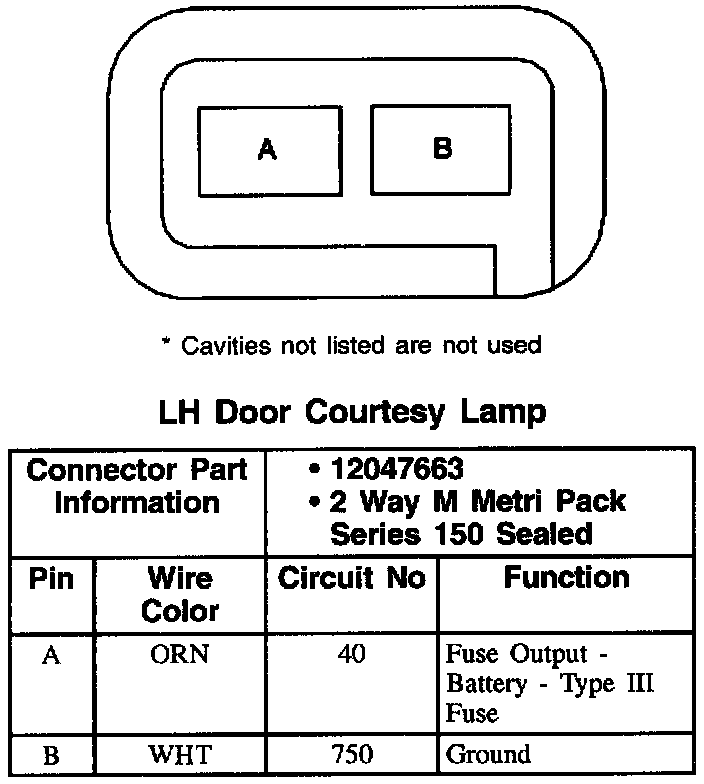

LH Door Courtesy Lamp:

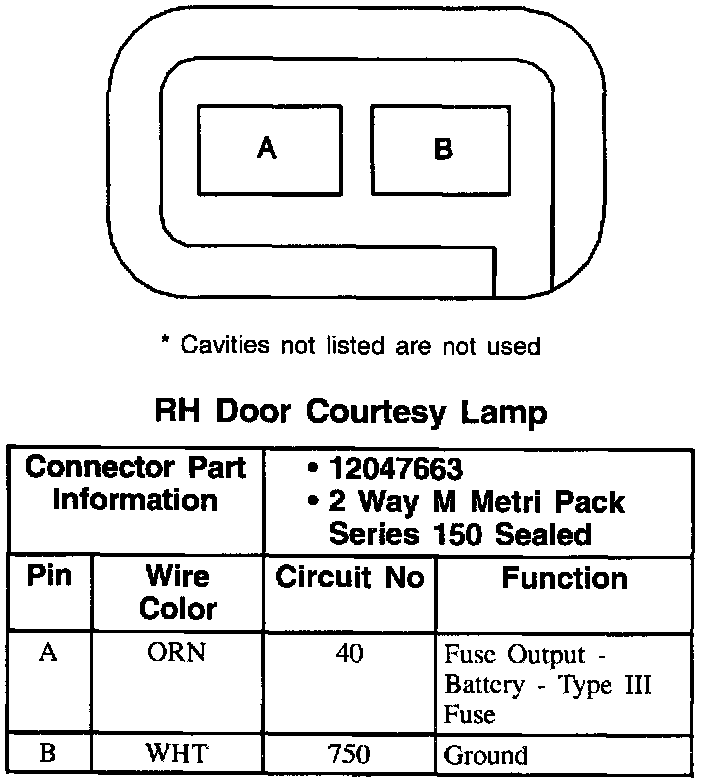

RH Door Courtesy Lamp:
