Chevy Truck
>>
1998
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body and Frame
>>
Trunk / Liftgate
>>
System Diagram
>>
In-line Body Harness To LH Liftgate Strut Switch
In-line Body Harness To LH Liftgate Strut Switch

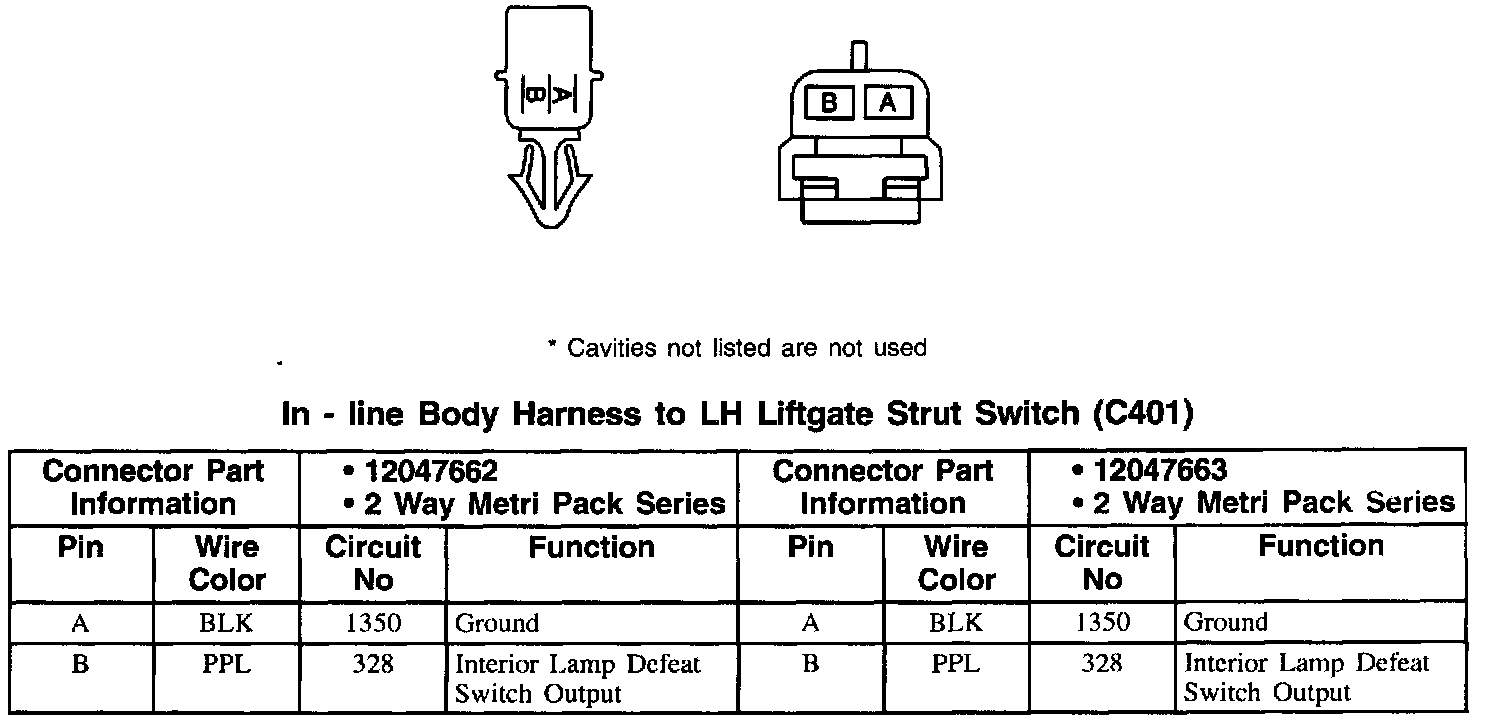

C401: In-line Body Harness To LH Liftgate Strut Switch:
