Home
>>
Chevy Truck
>>
1998
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

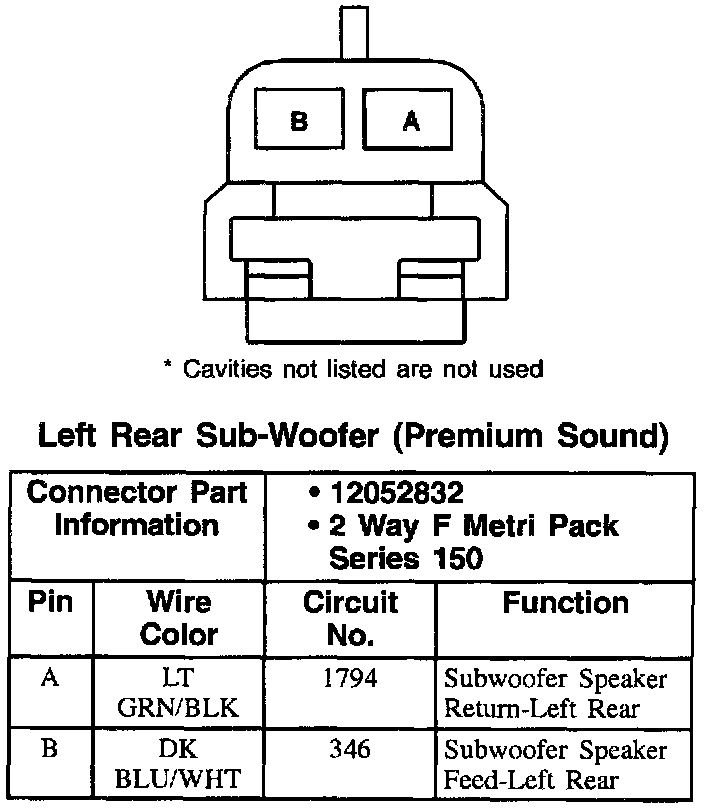

Left Rear Sub-Woofer (Premium Sound):
Right Rear Sub-Woofer (Premium Sound):
Sub-Woofer Amplifier Connector:
