Chevy Truck
>>
1998
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
>>
Passenger Inflator Module
Passenger Inflator Module

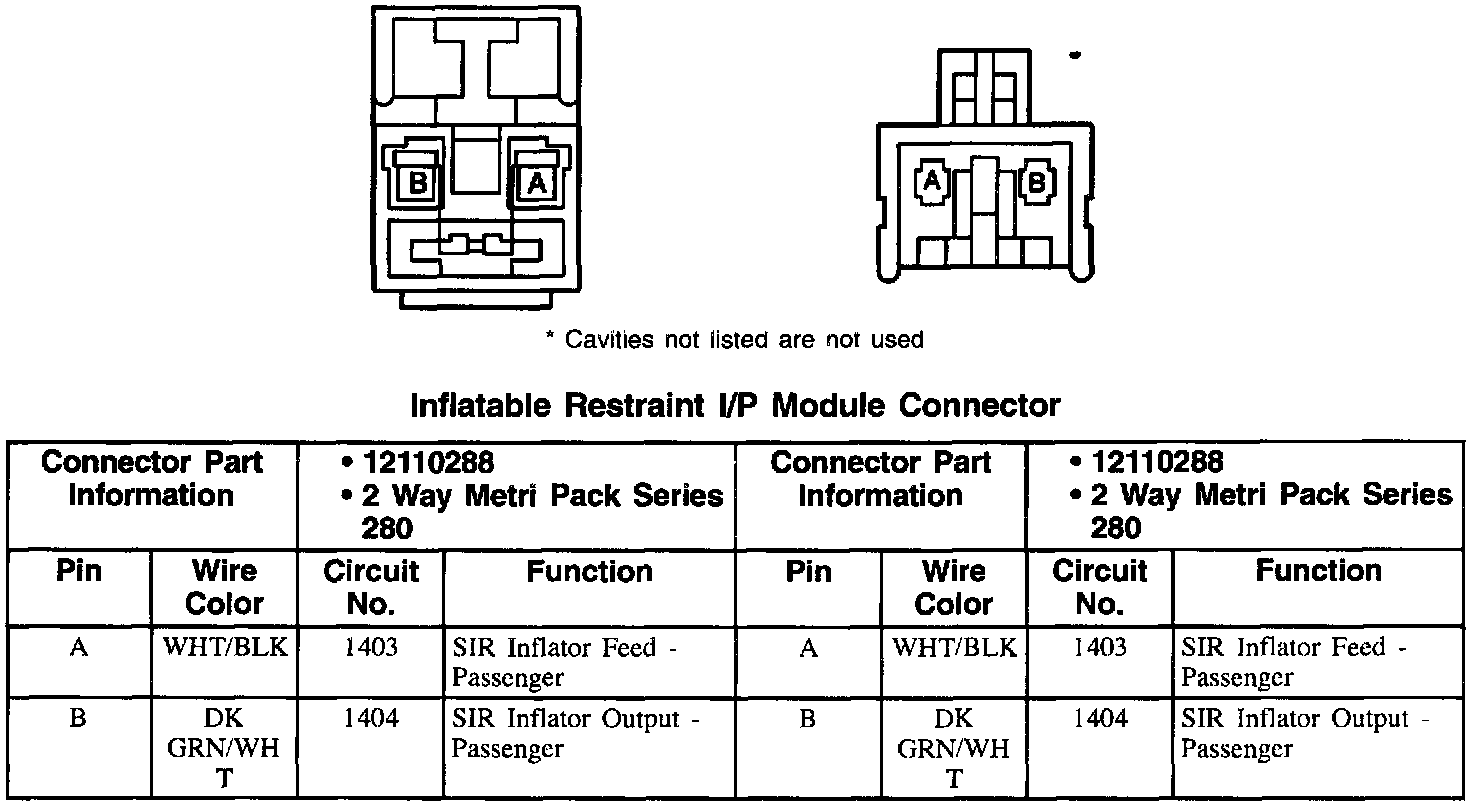

Inflatable Restraint I/P Module Connector:
