Home
>>
Chevy Truck
>>
1998
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
>>
Driver Inflator Module
Driver Inflator Module

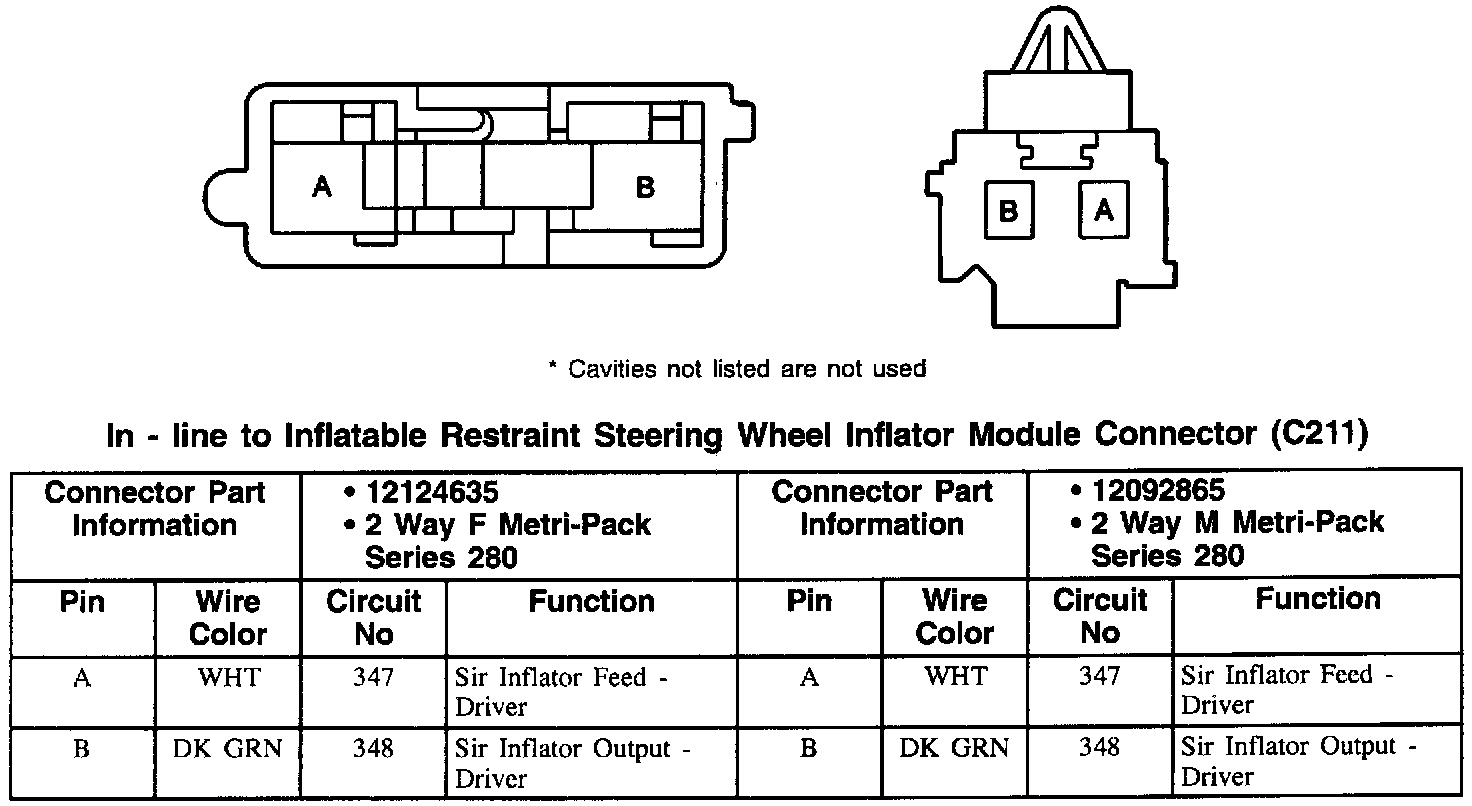

C211: In-line To Inflatable Restraint Steering Wheel Inflator Module Connector:
