Master Cylinder Replacement

REMOVAL PROCEDURE
1. Apply the parking brake.

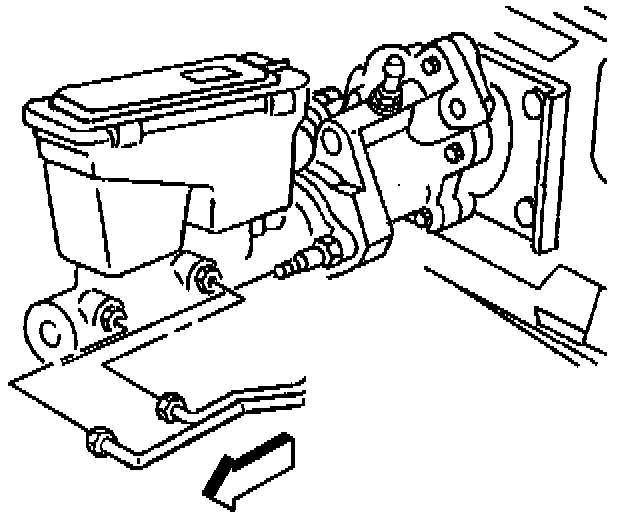

2. Disconnect the brake pipes.
3. Plug the pipes in order to prevent brake fluid loss or contamination.

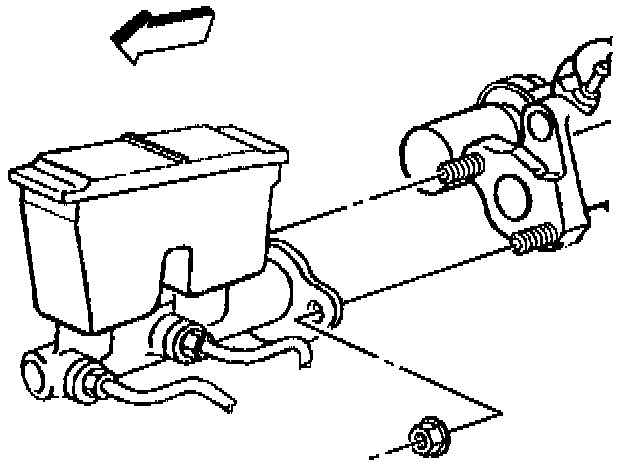

4. Remove the master cylinder nuts.
5. Remove the master cylinder.

INSTALLATION PROCEDURE
Before you install the master cylinder, bench bleed the master cylinder.

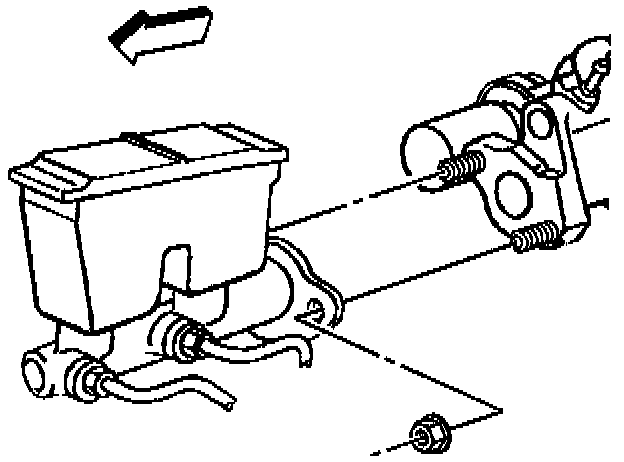

1. Install the master cylinder.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.





2. Install the master cylinder nuts.
^ Tighten the nuts to 36 Nm (27 ft. lbs.).





3. Connect the brake pipes.
^ Tighten the pipe fittings to 27 Nm (20 ft. lbs.).

4. Bleed the brakes.
