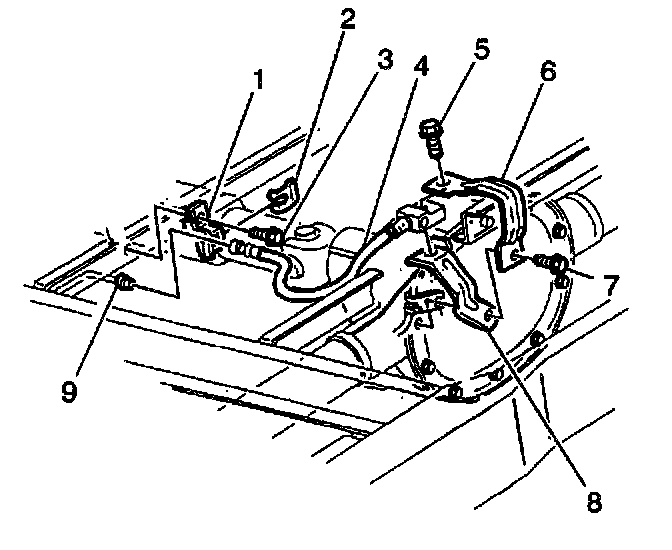

Rear Hose

REMOVAL PROCEDURE





1. Disconnect the rear brake pipes from the junction block.





2. Disconnect the pipe fitting (9).
3. Remove the retainer (2).
4. Remove the bolt (5).
5. Remove the rear hose (4).

INSTALLATION PROCEDURE





1. Install the rear hose (4).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

2. Install the bolt (5).
^ Tighten the bolt to 18 Nm (13 ft. lbs.).

3. Install the retainer (2).
4. Connect the pipe fitting (9).
^ Tighten the pipe fitting to 18 Nm (13 ft. lbs.).





5. Connect the rear brake pipes to the junction block.
^ Tighten the rear brake pipe fittings to 18 Nm (13 ft. lbs.).

6. Bleed the brakes.
