Home >> Chevy Truck >> 1998 >> Astro Van L AWD V6-4.3L VIN W >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Wheel Speed Sensor >> Diagrams >> LH

LH

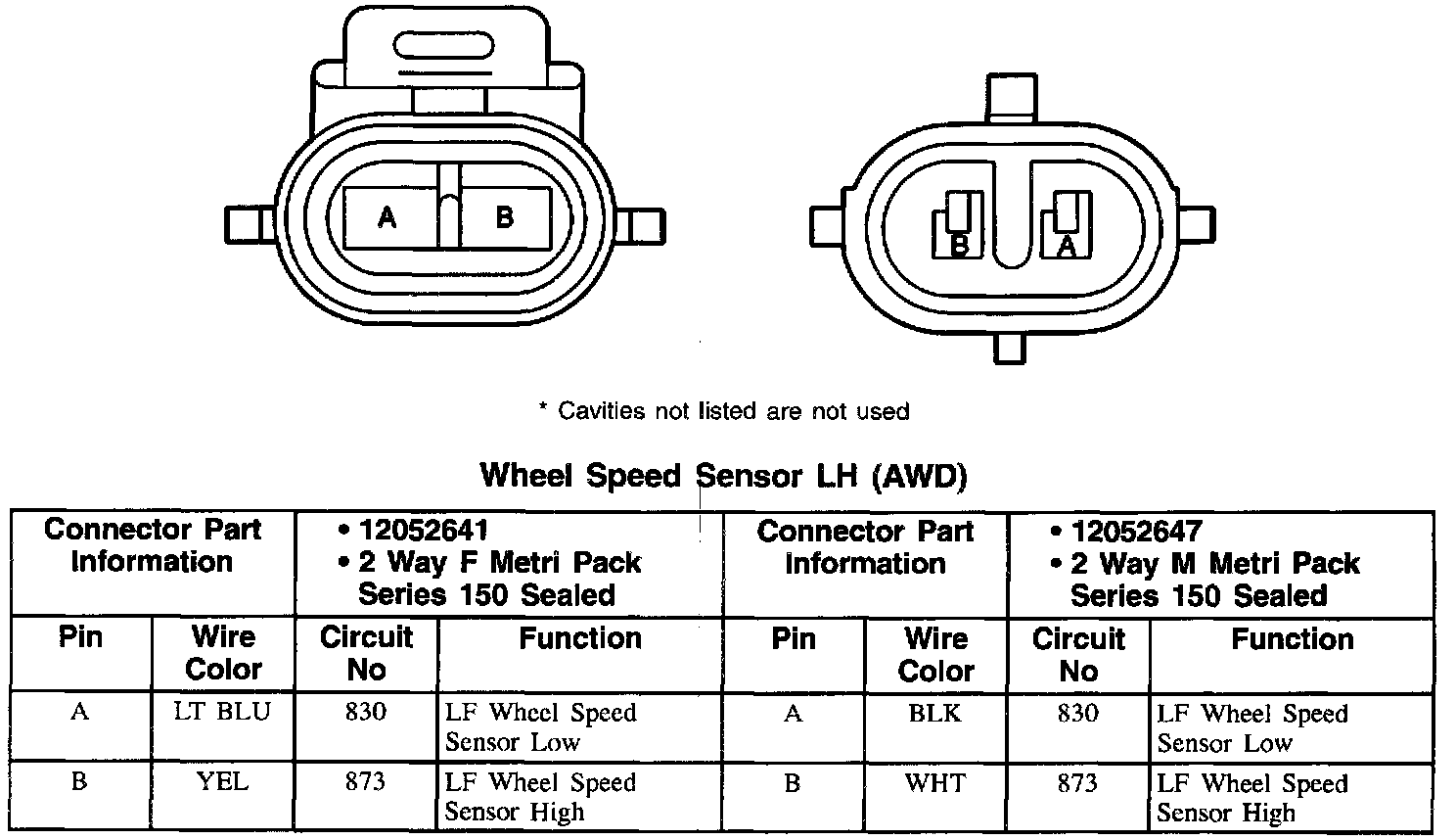

Wheel Speed Sensor, LH:
