Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Actuator
>>
Diagrams
>>
Liftgate Lock Actuator
Liftgate Lock Actuator

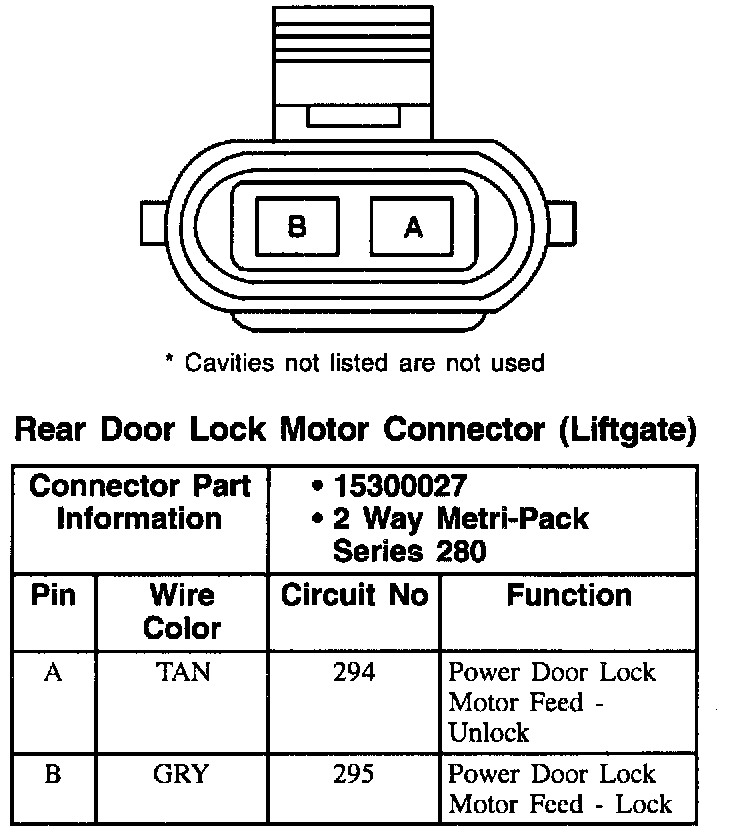

Rear Door Lock Motor Connector (Liftgate):
