Lock Lever

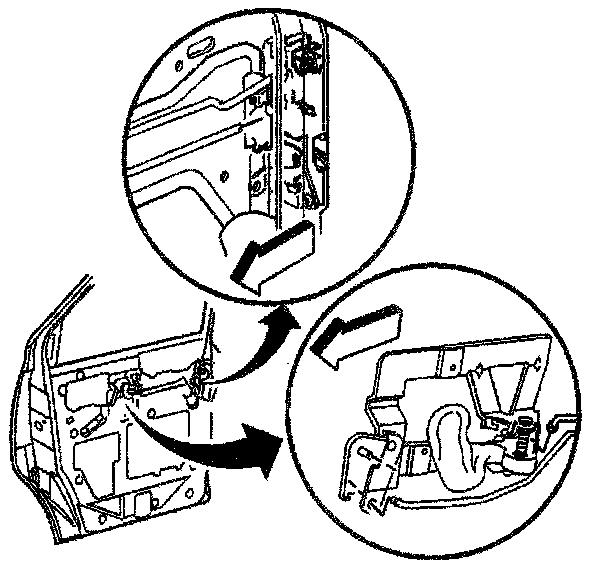

Removal Procedure






1. Remove the trim panel.
2. Remove the lock rod from the lock lever clip(2).






3. Remove the bolts that retain the lever to the door.






4. Remove the lock lever from the door.

Installation Procedure






1. Install the lock lever to the door.






2. Install the bolts that retain the lever to the door. Tighten the bolts to 9 Nm (80 lb in).
3. Inspect the condition of the lock rod retainers. If the retainers are damaged, replace the retainers.






4. Install the lock rod to the lock lever clip (2).
5. Install the trim panel.
