Home >> Chevy Truck >> 1997 >> S10/T10 P/U 4WD V6-4.3L VIN X >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Description and Operation >> New Venture Gear 233 Transfer Case >> Electronic Shift System Description and Operation >> Motor/Encoder Channel Signal Table

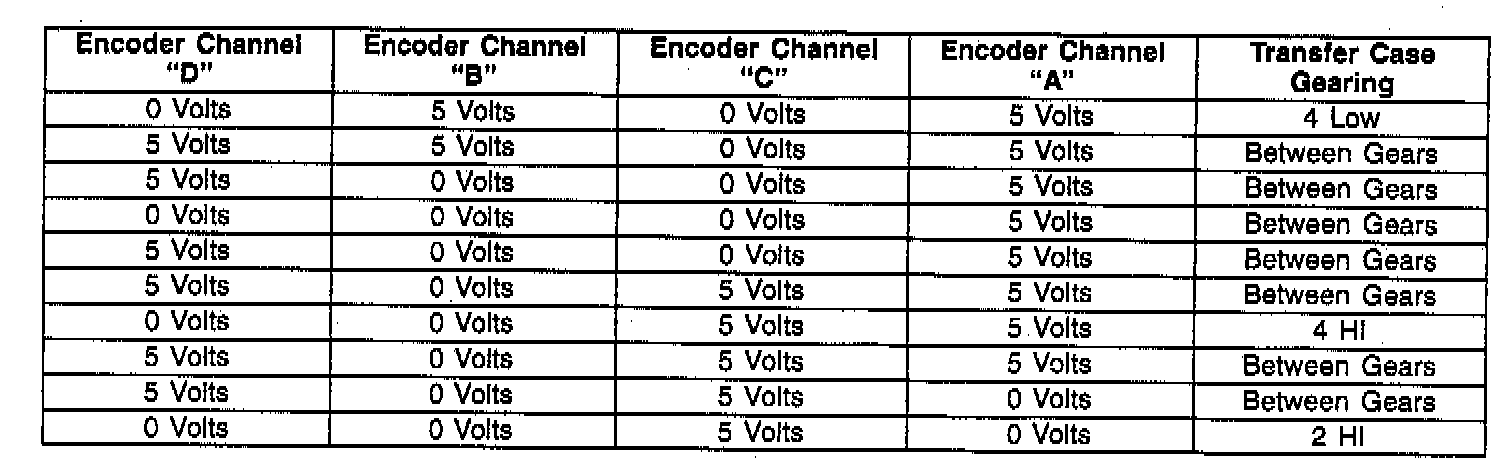

Motor/Encoder Channel Signal Table
