Windshield Washer Pump: Testing and Inspection

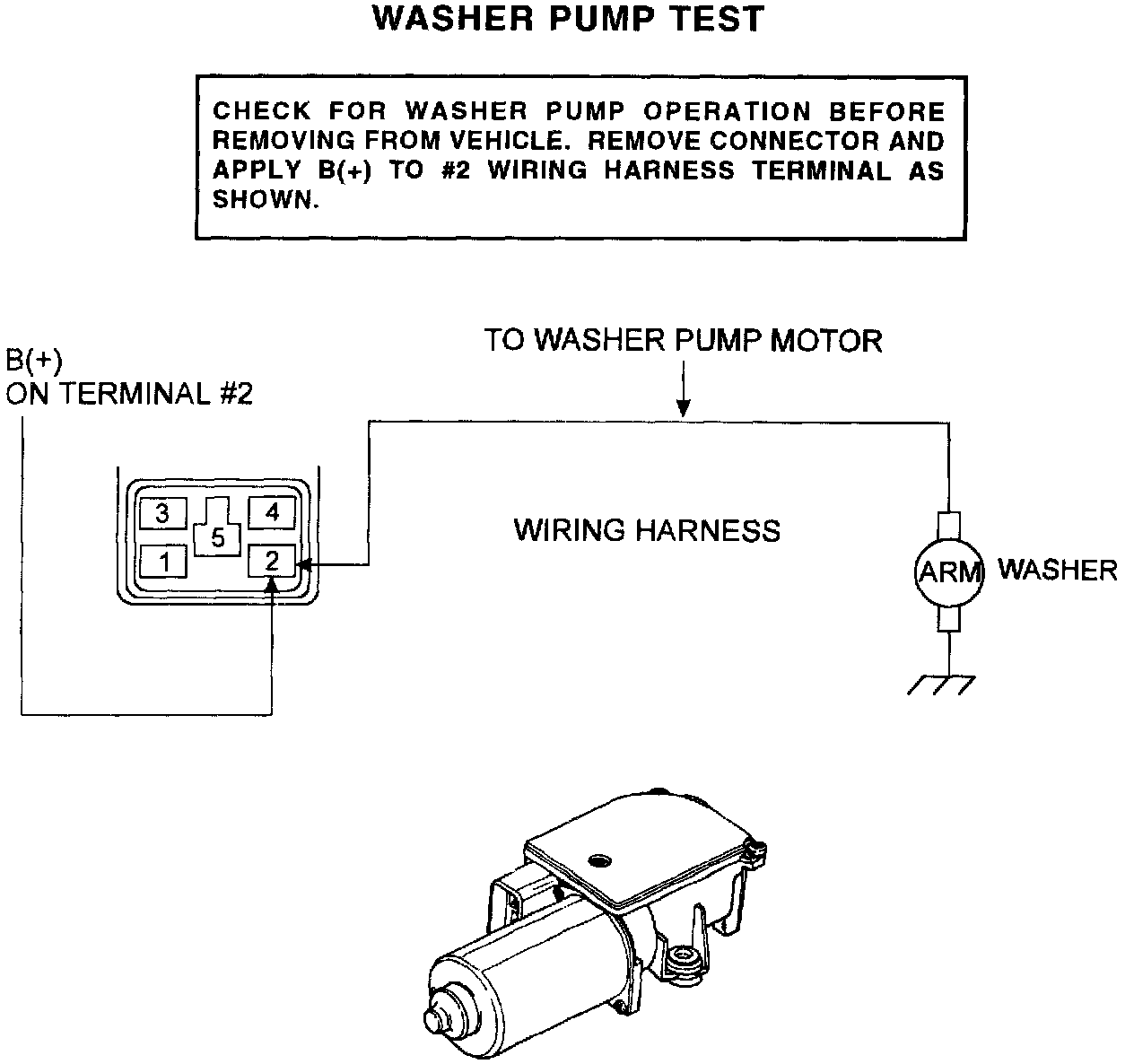

Wiring Diagram:

1. If motor does not run or pump solvent replace washer pump.
2. If motor runs and pumps solvent, problem is in circuit board, motor park switch, or wiper switch. Refer to Wiper/Washer Switch Tests.
