Home
>>
Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Wheel Speed Sensor
>>
LH Front
LH Front

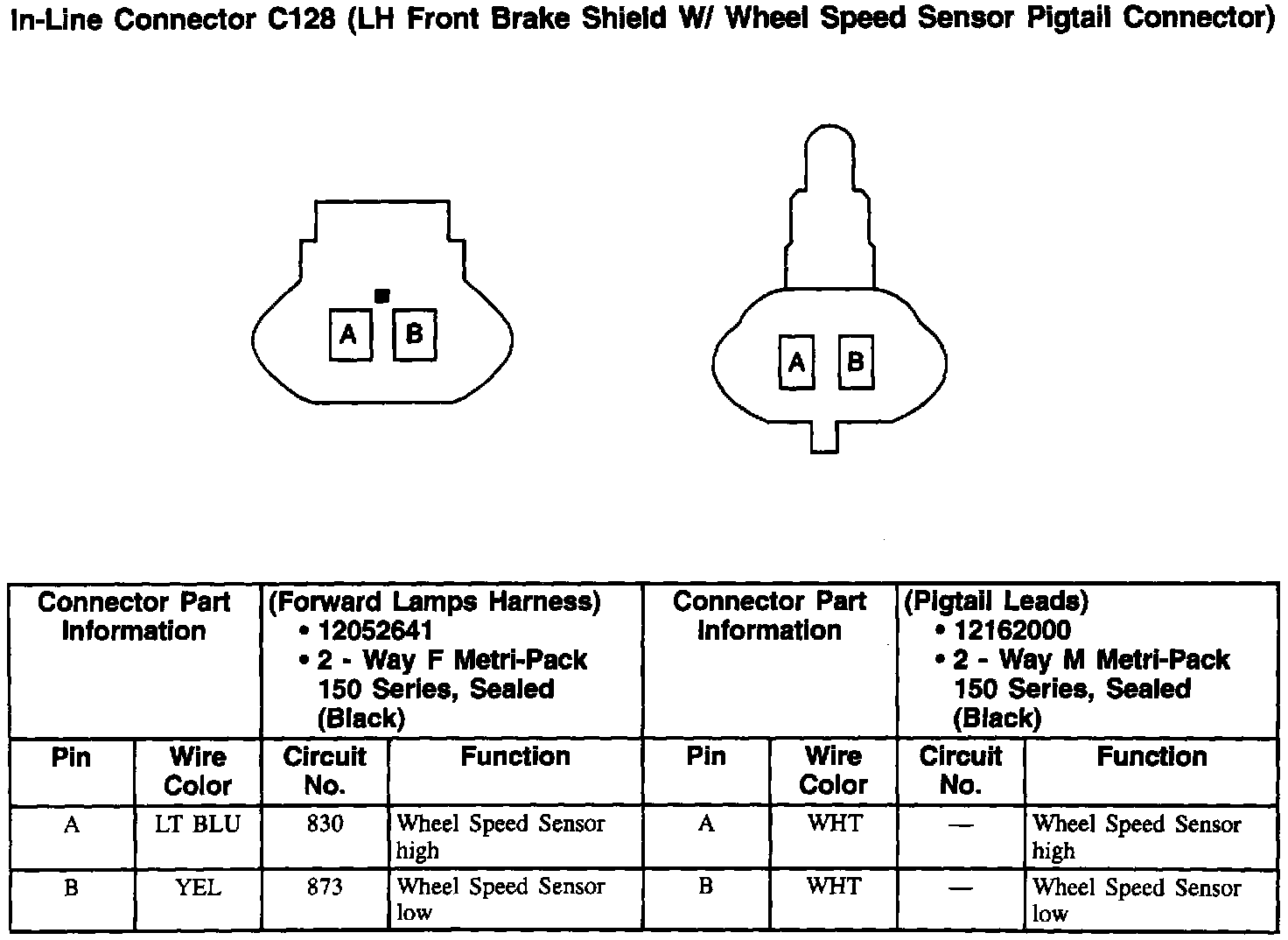

In-Line Connector: C128 (LH Front Brake Shield):
