Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>

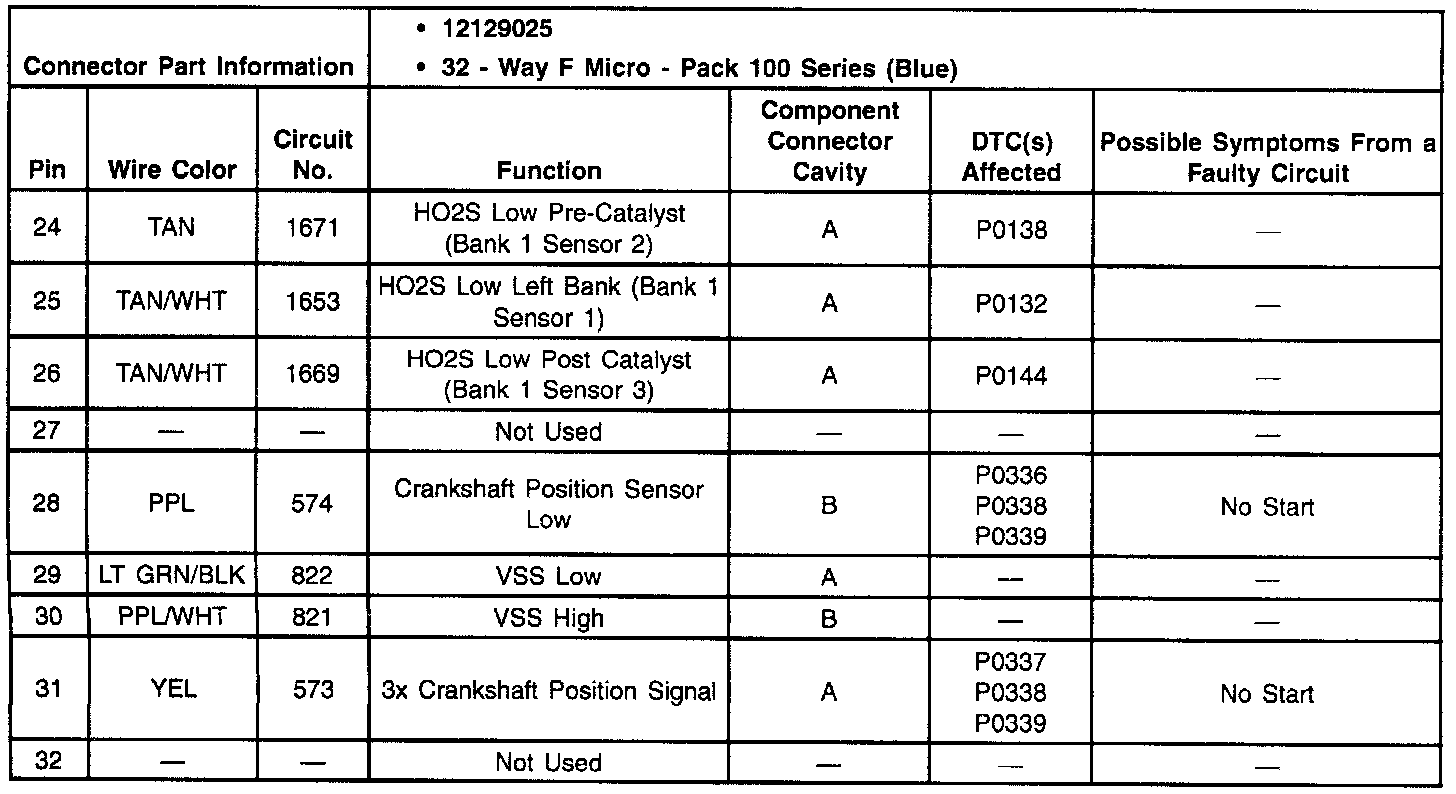

Blue (C1)
>>
Pins 24-32
Pins 24-32
Description:
