Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Generator
Generator

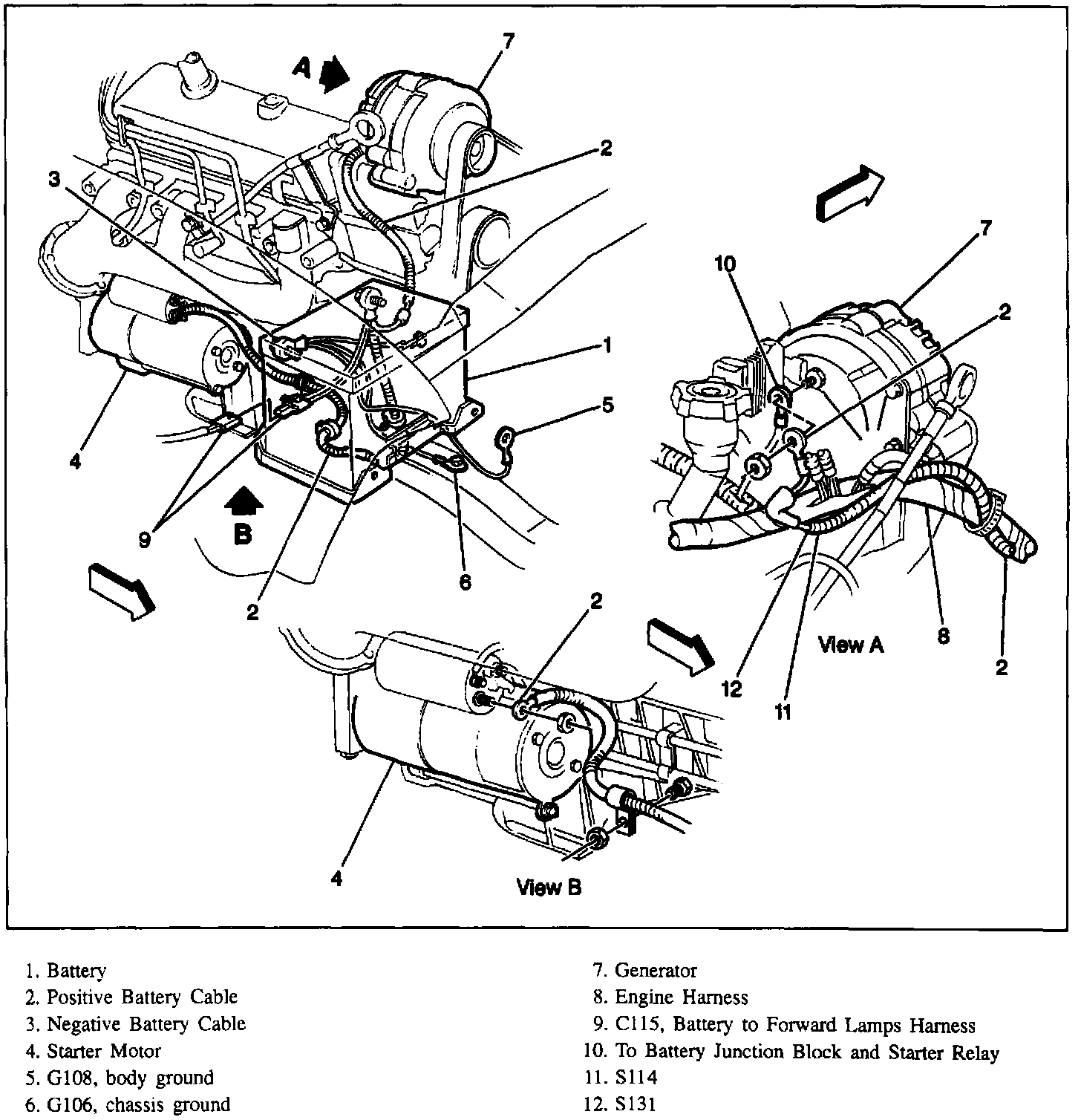

Battery Wiring:

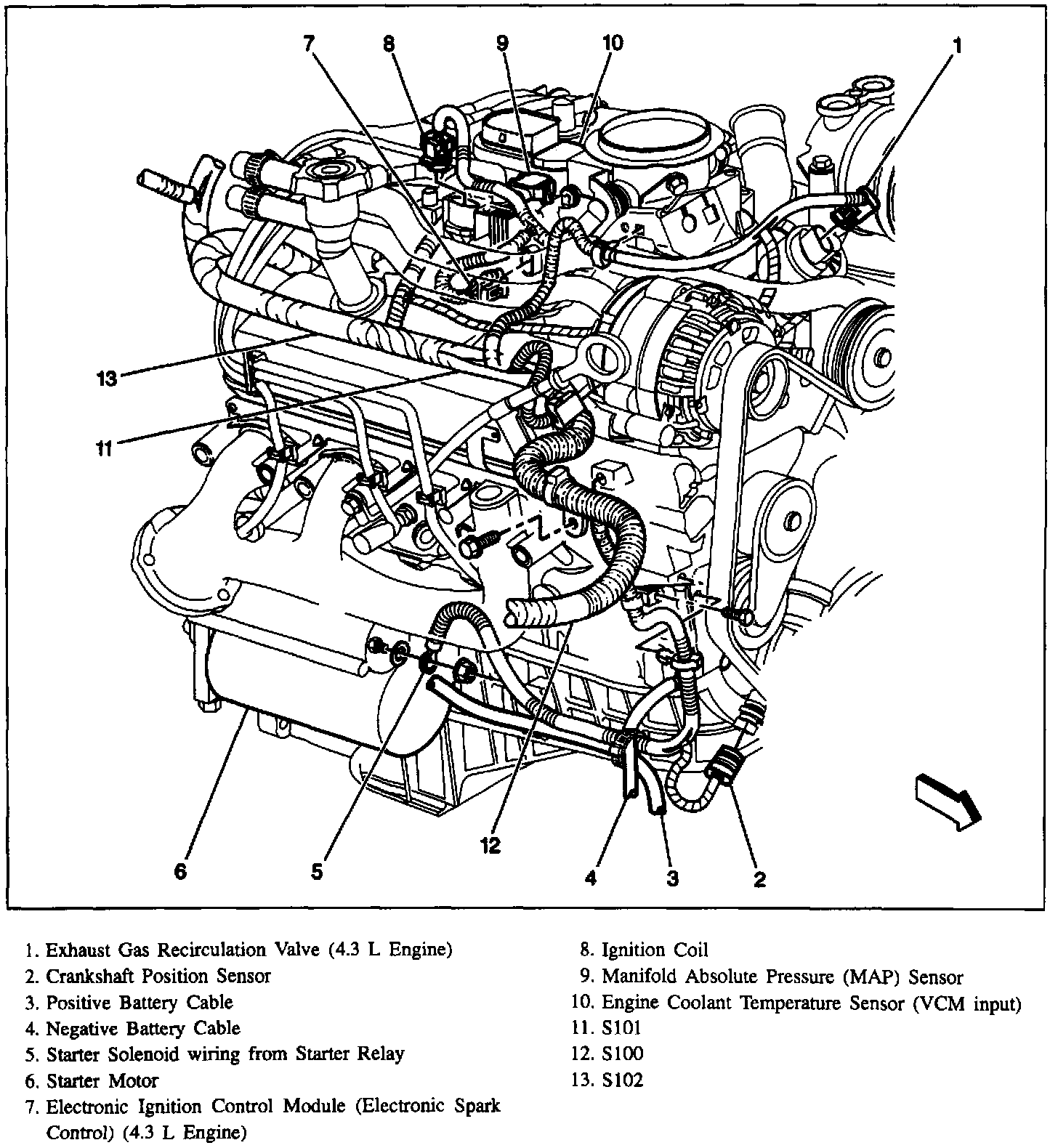

Engine Wiring RH Side:
