Backing Plate: Service and Repair

Backing Plate Replacement:

REMOVE OR DISCONNECT
1. Brake shoe.
2. Wheel cylinder.
3. Axle shaft. Refer to Steering and Suspension.

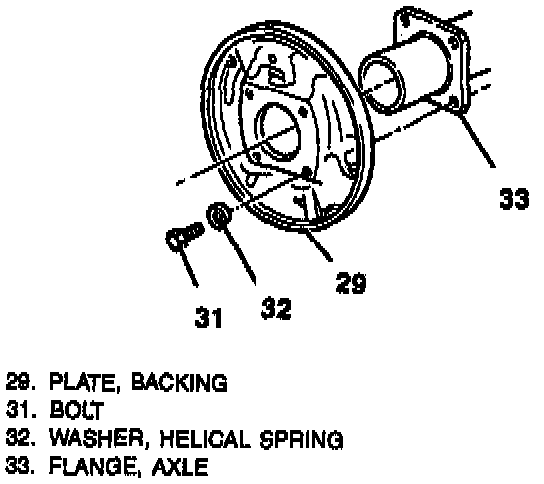

4. Bolts (31) and washers (32).
5. Backing plate (29).

INSTALL OR CONNECT
1. Backing plate (29).
2. Bolts (31) and washers (32).
^ Tighten Bolts (31) to 48 Nm (35 ft. lbs.).
3. Axle shaft. Refer to Steering and Suspension.
4. Wheel cylinder.
5. Brake shoes.
6. Bleed brakes.
