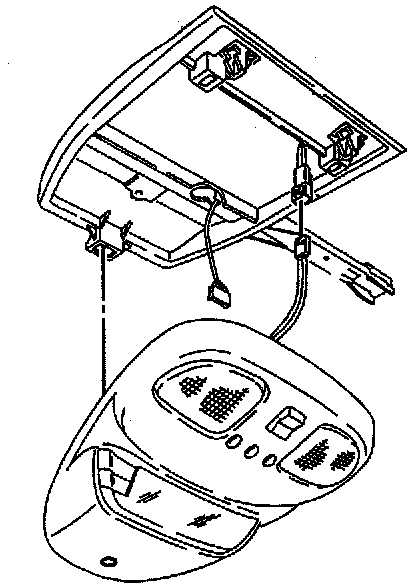

Sunroof Console and Mounting Bracket

Sunroof Console And Mounting Bracket:

REMOVE OR DISCONNECT
1. Screw that retains the sunroof console to the roof at the front of the console.
2. Sunroof console from the roof by pulling downward on the rear of the console.
3. Electrical connectors as necessary.
4. Screw that retains the sunroof console mounting bracket to the roof.
5. Sunroof console mounting bracket from the roof by releasing the tabs at the rear of the bracket.

Sunroof Console And Mounting Bracket:

INSTALL OR CONNECT
1. Sunroof console mounting bracket to the roof.
2. Screw that retains the sunroof console mounting bracket to the roof.
Tighten
Screw to 1.9 Nm (17 lb in).
3. Electrical connectors as necessary.
4. Console to the roof by inserting mounting tabs into the mounting bracket and pushing upward on the rear of the console.
5. Screw that retains the console to the roof at the front of the console.
Tighten
Screw to 1.9 Nm (17 lb in).
