Overhead Console

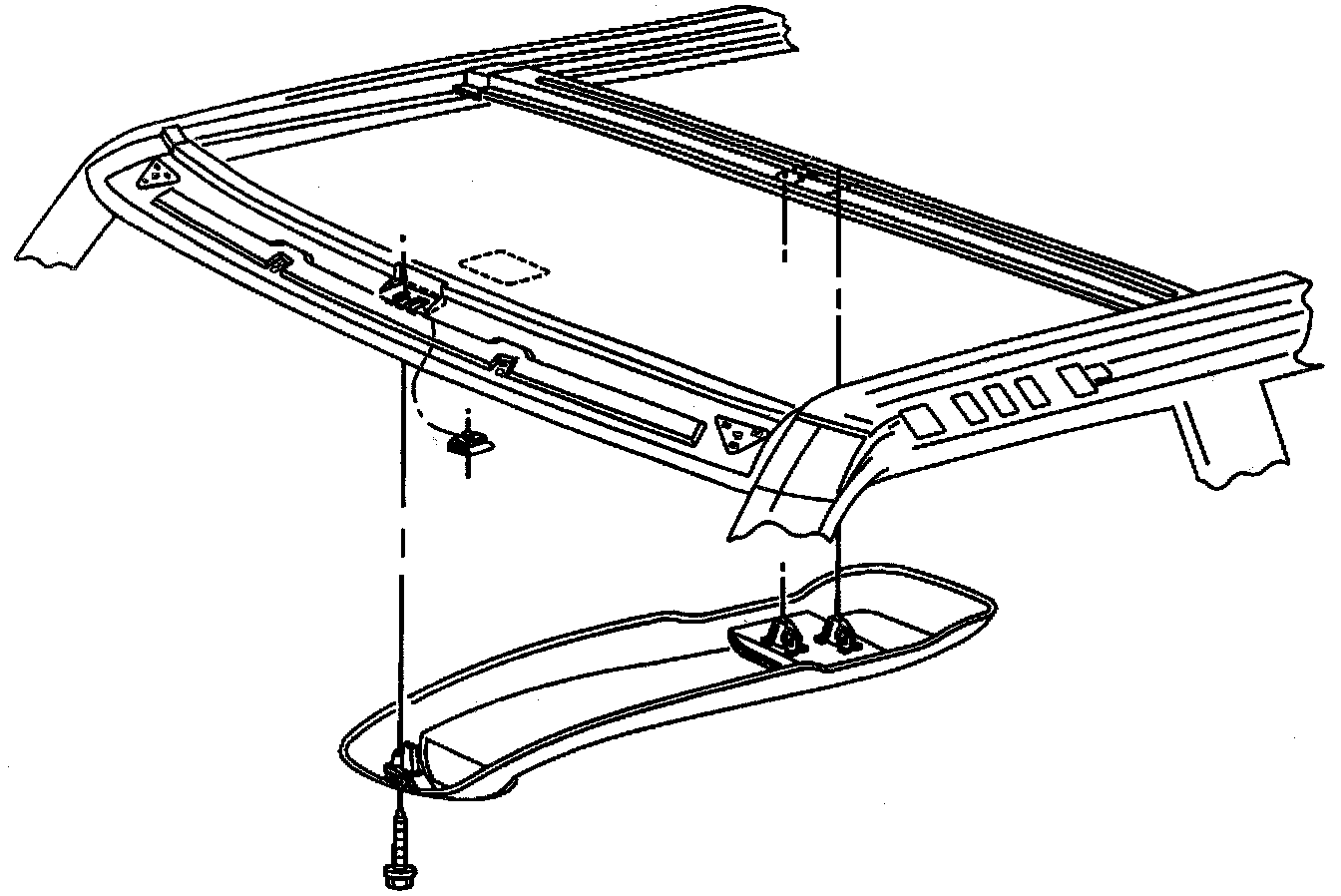

Overhead Console Mounting:

REMOVE OR DISCONNECT
1. Screw that retains the console to the roof at the front of the console.
2. Console from the roof by pulling downward at the rear of the console.
3. Electrical connectors as necessary.

Overhead Console Mounting:

INSTALL OR CONNECT
1. Electrical connectors as necessary.
2. Console to the roof by inserting mounting tabs into roof panel and pushing upward on the rear of the console.
3. Screw that retains the console to the roof at the front of the console.
Tighten
Screw to 1.9 Nm (17 lb in).
