Front Wiper Motor

Description:

Remove or Disconnect
1. Negative battery cable.
2. Wiper arm and blade assemblies.
3. Cowl vent grille and screen.
4. Electrical connector from wiper motor assembly.

Description:

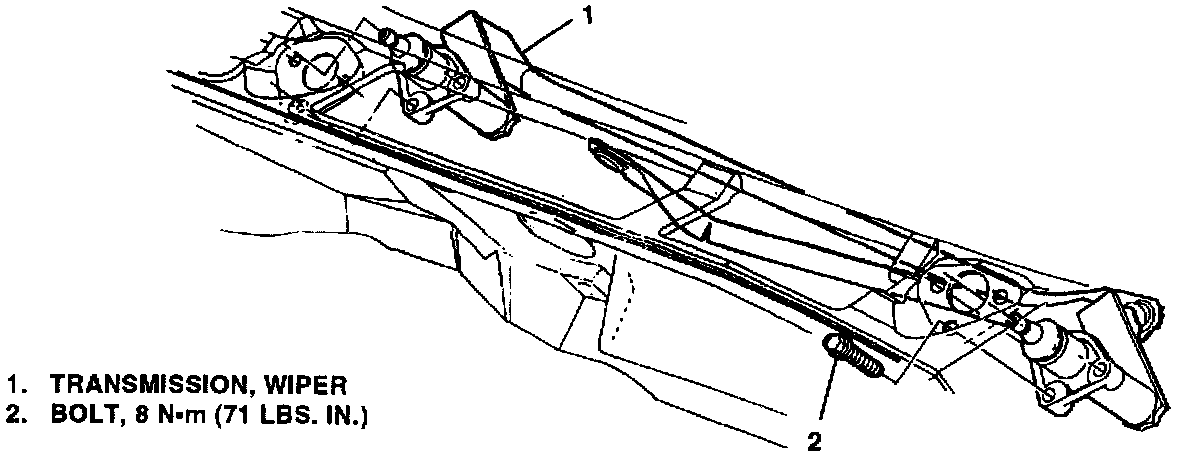

5. Transmission from wiper motor drive link using J 39232
6. Wiper motor assembly from the vehicle.

Description:

Install or Connect
1. Wiper motor assembly to the vehicle with three screws.

Tighten
^ Wiper motor assembly mounting screws to 7 N.m (62 lbs. in.).

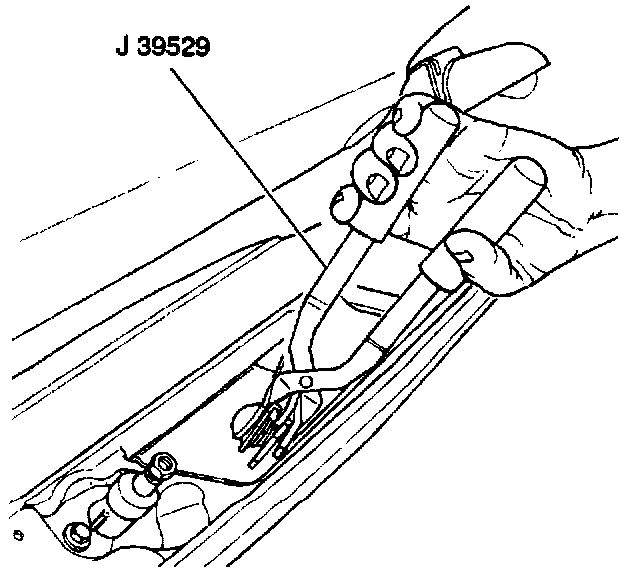

2. Drive link socket onto the crank arm ball of the wiper motor assembly using J 39529.
^ Lubricate the inside of the socket with white lithium grease (GM P/N 9985885) or equivalent.

IMPORTANT: Wiper transmission assembly must be assembled to the crank arm past the second detent so the seal is compressed to a maximum height of 25 mm (1 inch).

3. Electrical connector.
4. Cowl vent screen and grille.
5. Wiper arm and blade assemblies. 6. Negative battery cable.

Inspect
^ Perform System Check.
