Wiper Park Ramp Replacement

Description:

Remove or Disconnect
1. Interior panel from vehicle endgate.

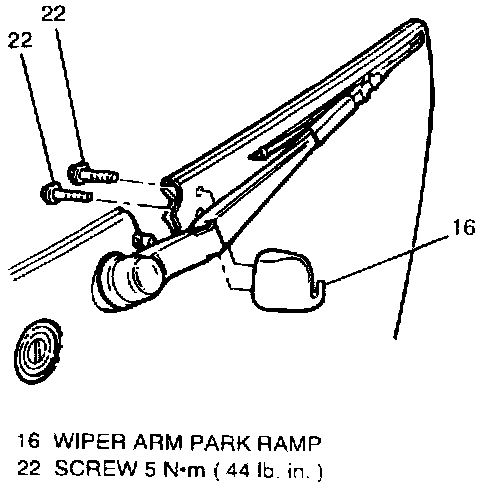

2. Two screws (22) and wiper arm park ramp (16) from vehicle.

Install or Connect
1. Install wiper arm park ramp (16) under wiper arm assembly and on vehicle with two screws (22).

Tighten
^ Tighten two screws (22) to 5 N.m (44 lb. in.).

2. Interior panel to vehicle endgate.
