Caliper/Steering Knuckle - Revised Clearance Specs
File in Section: 5 - BrakesBulletin No.: 86-50-07
Date: May, 1998
SERVICE MANUAL UPDATE
Subject:

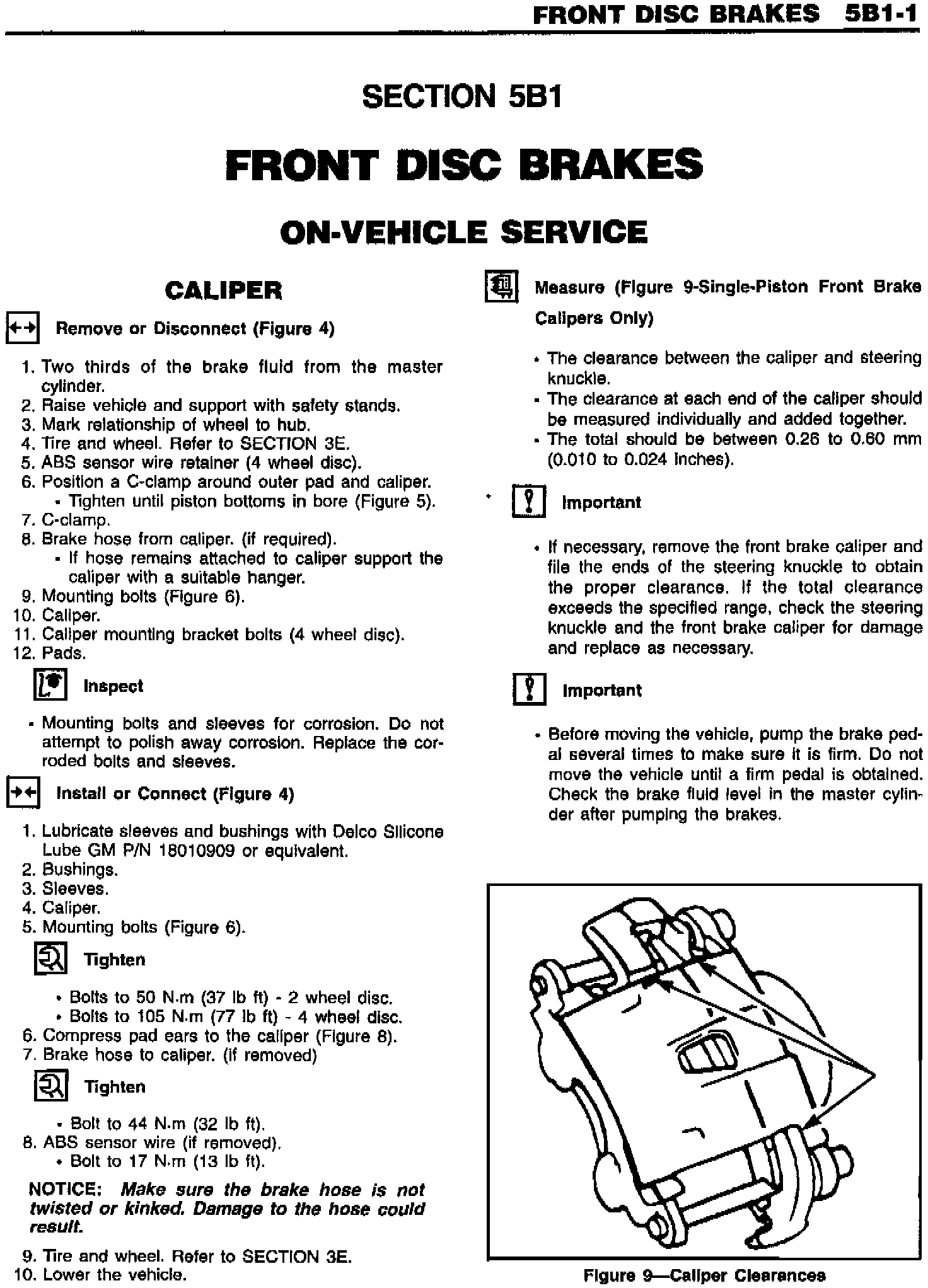

Section 5B1 - Front Disc Brakes - Revised Procedure and Specifications for Clearance Between Caliper and Steering Knuckle
Models:
1997 Chevrolet and GMC S/T Models
1997 Oldsmobile Bravada with JM3 Brake System (Single Piston Front Brake Caliper)
This bulletin is being issued to revise the Procedure and Specifications for clearance between caliper and steering knuckle in Section 5B1 of the Service Manual for 1997 S/T models.
