Starter Motor Assemble

Starter Motor Assemble:

1. Lightly lubricate the area on the armature shaft that will be under the drive components.
2. Install the drive components onto the armature shaft with the drive away from the armature.
3. Install the drive stop collar onto the armature shaft.
4. Install the new drive stop retainer ring into the groove on the shaft.

Starter Motor Assemble:

5. Install the thrust collar to the end of the shaft with the small flange toward the retainer ring.

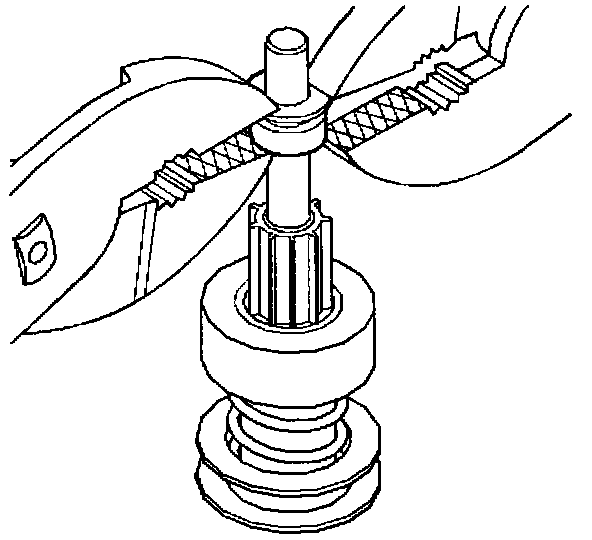

6. Snap the drive stop collar over the retainer ring using pliers.
7. Inspect the bearing in the drive end housing.
7.1. Do not add lubricant. Roller type bearings are permanently lubricated.
7.2. If the bearing is damaged or dry, replace the bearing using a small bearing puller.
7.3. Recess the bearing 1.6 mm (0.06 in) into the housing.
8. Install the shift lever shaft to the thrust collar.

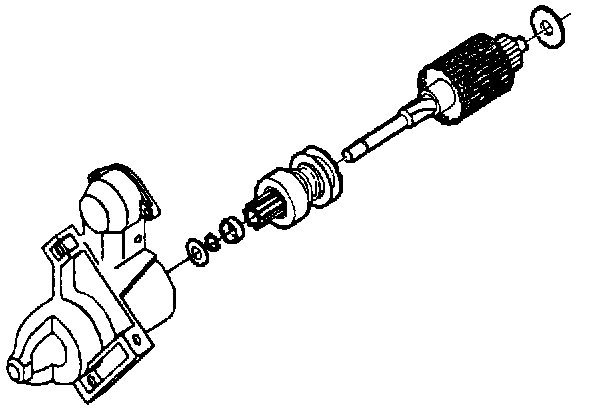

9. Install the armature and the drive components into the drive end housing.
10. Install the shift lever shaft in the drive end housing.
11. Install the shaft retainer.

Starter Motor Disassemble:

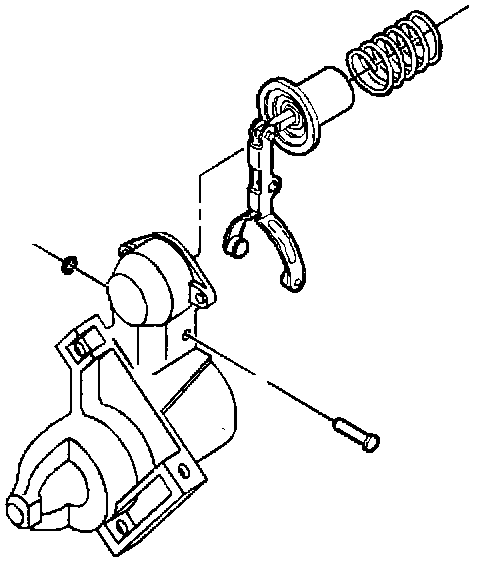

12. Place the return spring onto the plunger.
13. Press the return spring in order to install the solenoid over the plunger.
14. Align the solenoid with the drive end housing.
15. Install the screws.
Tighten
Tighten the screws to 6.5 N.m (60 lb in).
16. Replace any damaged brushes.
17. Tighten the brushes.
18. Clean the brush contact faces in the frame and field with a soft cloth.
19. Install the frame and field components as follows:
19.1. Apply sealer to the solenoid flange where the frame with field contact.
19.2. Push the brushes into the brush holders and hold.
19.3. Install the frame and the field components over the armature.
19.4. Align the frame and field components to the drive end housing.
19.5. Release the brushes onto the commutator.
19.6. Inspect that all four brushes move freely in the holders.
19.7. Inspect that the brushes are in contact with the commutator.
20. Install the brake washer onto the armature shaft.
21. Inspect the bearing in the commutator end frame.
- Do not lubricate the bearing. Roller type bearings are permanently lubricated.
- Replace the bearing if it is damaged or dry using a small bearing puller.
- Recess the bearing 2 mm (0.08 in) into the housing.
22. Install the commutator end frame onto the armature shaft.
23. Align the commutator end frame and the frame with field.
24. Install the identification tag onto one through bolt.
25. Install the starter motor through bolts.
If the through bolts have different heads, install as noted during disassembly.
Tighten
Tighten the bolts to 8.5 N.m (75 lb in).
26. Inspect the drive clearance.
27. Install the solenoid terminal field lead.
Tighten
Tighten the field lead screw to 8.5 N.m (75 lb in).
28. Install the starter motor.
