Positive Crankcase Ventilation: Service and Repair

Crankcase Ventilation System:

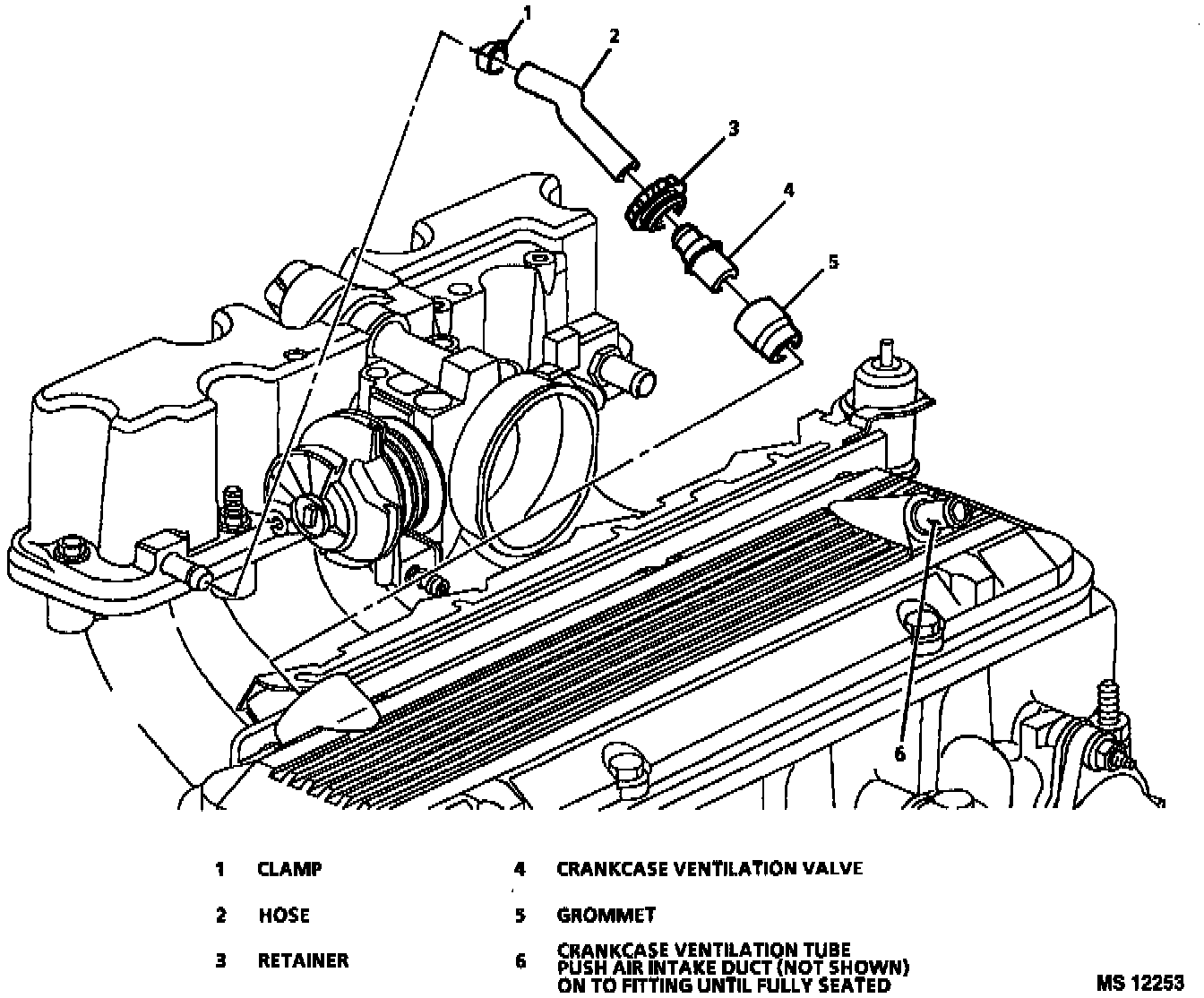

Refer to the illustration for the replacement of the crankcase ventilation system components.

An engine which is operated without any crankcase ventilation can be damaged. Therefore, it is important to replace the crankcase ventilation valve at required intervals.

Periodically, inspect the entire system and replace any parts showing signs of deterioration.
