Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>

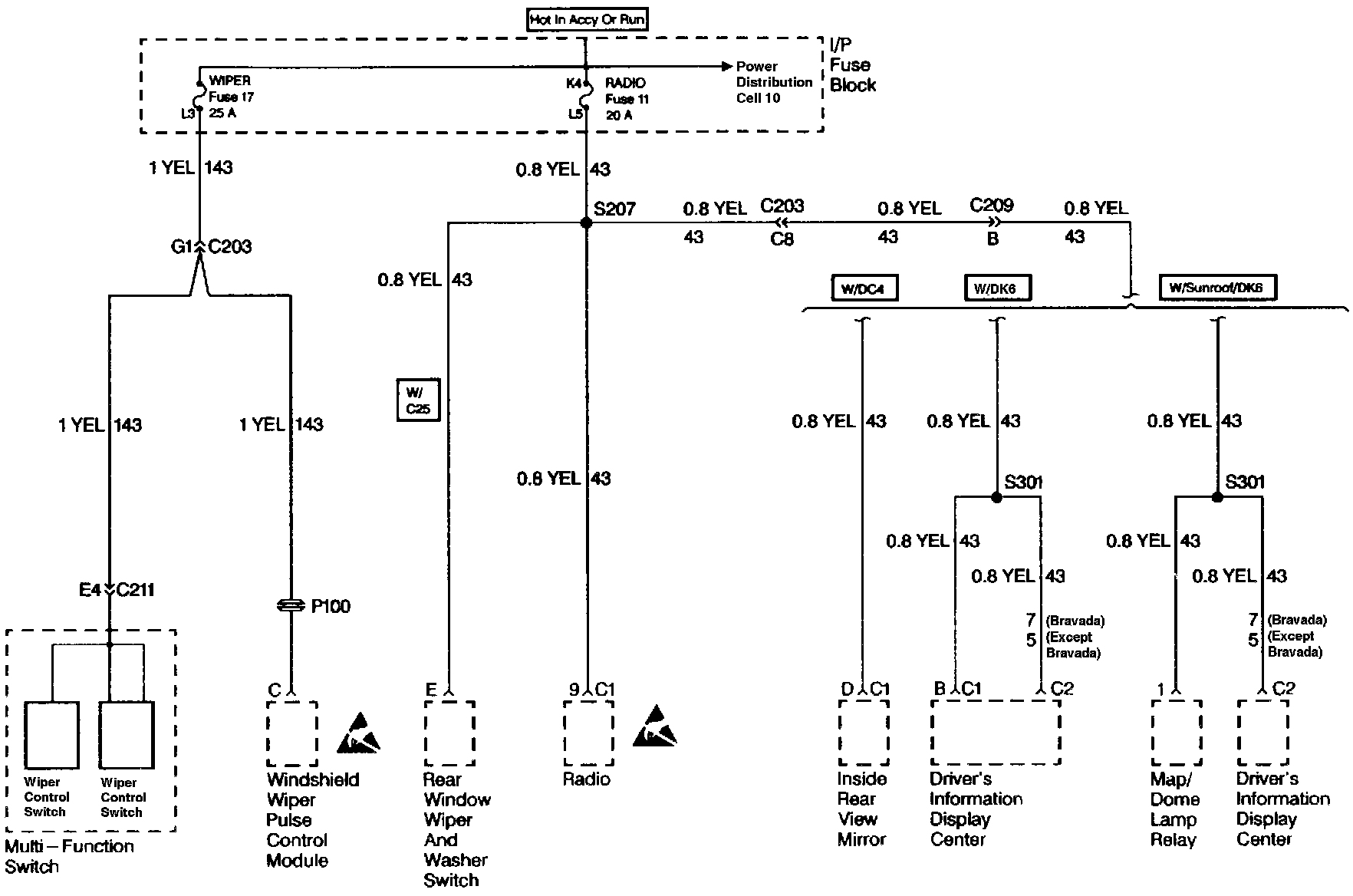

Fuse 17
Fuse 17
Fuse Block Details:
