Home >> Chevy Truck >> 1997 >> S10/T10 P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> S229

S229

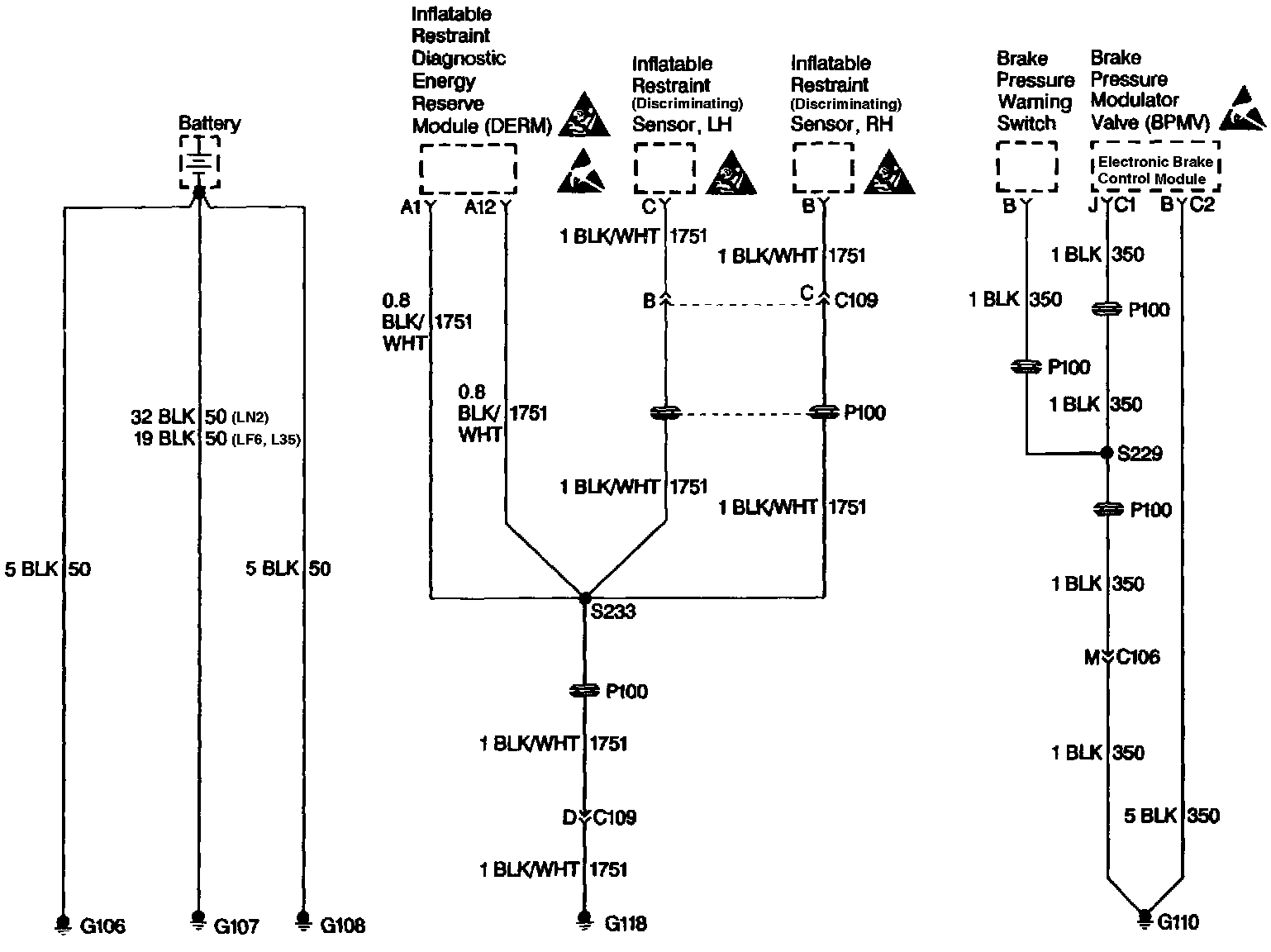

Ground Distribution (Part 1 Of 2):
